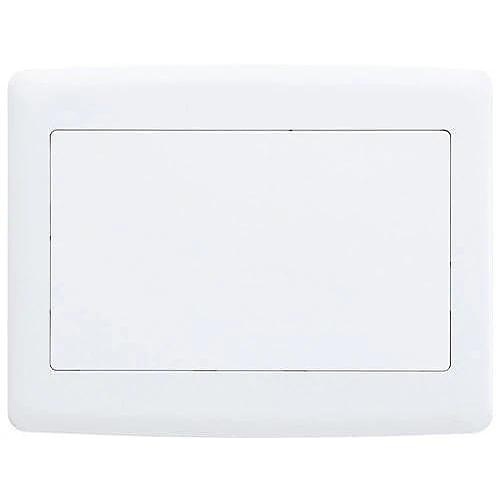

Image of AJ-IXWMAAST5
Shop all Aiphone

Aiphone IXW-MAA-SOFT-5 Multi-Purpose Adaptor with PC Master Station Software, Licenses for (5) IX-SOFT PC Master Station Instances

IXW-MAA-SOFT-5|AJ-IXWMAAST5
Shop all Aiphone

Aiphone IXW-MAA-SOFT-5 Multi-Purpose Adaptor with PC Master Station Software, Licenses for (5) IX-SOFT PC Master Station Instances

IXW-MAA-SOFT-5|AJ-IXWMAAST5
Key Features
  • Supports 1, 5 or 10 IX-SOFT licenses
  • PoE Powered (802.3af)
  • 4-Contact Inputs
Key Features
  • Supports 1, 5 or 10 IX-SOFT licenses
  • PoE Powered (802.3af)
  • 4-Contact Inputs

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Supports 1, 5 or 10 IX-SOFT licenses
  • PoE Powered (802.3af)
  • 4-Contact Inputs
Aiphone

Aiphone IXW-MAA-SOFT-5 Multi-Purpose Adaptor with PC Master Station Software, Licenses for (5) IX-SOFT PC Master Station Instances

IXW-MAA-SOFT-5 | AJ-IXWMAAST5

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The IXW-MA-SOFT is a multi-purpose adaptor with licenses for 1, 5, or 10 IX-SOFT installations. The IXW-MA-SOFT comes with 4 contact inputs and 10 relay outputs. The inputs on the adaptor can be used to send a command to a specific station to perform a task. The relays on the adaptor can be associated to a specific station and programmed to change state when relay output 1 or 2 on the associated station changes state. This is beneficial when door release contacts need to be located inside the facility at a secure location, instead of at the door station. The IXW-MA-SOFT is surface mounted to a 3 or 4-gang box or ring. Wire terminations are made via option connectors supplied with the unit. Each connecting wire will need to be secured with a wire nut or crimp connector. The IXW-MA-SOFT is a PoE device, and can be programmed via IX Support Tool 5.0 or later.

Main Features

  • Supports 1, 5 or 10 IX-SOFT licenses
  • PoE Powered (802.3af)
  • 4-Contact Inputs
  • 24V AC/DC 500mA Relay contact rating
  • Programmed via IX Support Tool

General Information

Name: Aiphone IXW-MAA-SOFT-5 Multi-Purpose Adaptor with PC Master Station Software, Licenses for (5) IX-SOFT PC Master Station Instances
Category: Aiphone, Communications, Intercoms & Telephone Entry, Intercom & Entry Accessories, ADI Pro Rewards
UPC Code: 788255371600
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
Installation Instructions
