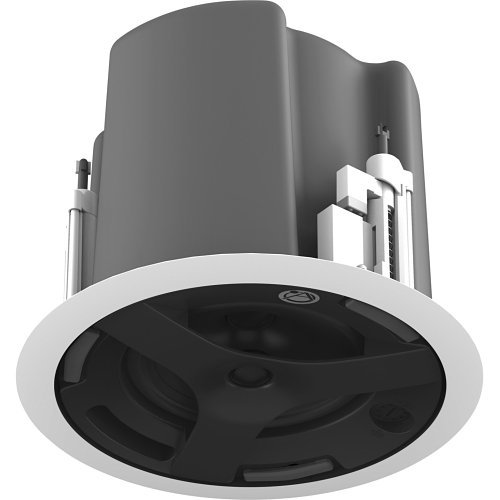

AtlasIED FAP63TUC-W FAP Strategy III Series 6.5" Full Range Coaxial In-Ceiling 32W Loudspeaker, White

FAP63TUC-W|AT-FAP63TUCW
Shop all AtlasIED

AtlasIED FAP63TUC-W FAP Strategy III Series 6.5" Full Range Coaxial In-Ceiling 32W Loudspeaker, White

FAP63TUC-W|AT-FAP63TUCW
Key Features
What's Included
  • 70.7V/100V
  • Patented Safety First Mounting System Enables Installation without Drill or Screwdriver
  • Improved Waveguide Provides up to 130° Dispersion
Key Features
What's Included
  • 70.7V/100V
  • Patented Safety First Mounting System Enables Installation without Drill or Screwdriver
  • Improved Waveguide Provides up to 130° Dispersion

Sign In for Dealer Pricing

Become an ADI Customer
Hybrid Cloud Storage for Video
Key Features
What's Included
  • 70.7V/100V
  • Patented Safety First Mounting System Enables Installation without Drill or Screwdriver
  • Improved Waveguide Provides up to 130° Dispersion
AtlasIED

AtlasIED FAP63TUC-W FAP Strategy III Series 6.5" Full Range Coaxial In-Ceiling 32W Loudspeaker, White

FAP63TUC-W | AT-FAP63TUCW

Please sign in to view pricing and availability and to add to cart.

Accessories

HDMI Extenders
AVARRO 0E-HDMICONV2 HDMI Audio Extractor
ADI # 0E-HDMICONV2
MODEL # 0E-HDMICONV2
AVARRO
AVARRO 0E-HDMICONV2 HDMI Audio Extractor
0E-HDMICONV2|0E-HDMICONV2
Sign In for Dealer Pricing
Battery Packs
Image of WT-OVRC1500U
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
WattBox
WattBox WB-OVRC-UPS-1500-1 UPS Battery Pack for IP Power Conditioners, 1500VA
WT-OVRC1500U|WT-OVRC1500U
Sign In for Dealer Pricing
Pro Amplifiers
Image of 8P-EADN12D10
ADI # 8P-EADN12D10
MODEL # 8P-EADN12D10
Episode
Episode EA-DYN-12D-100 Dynamic Series Class-D Amplifier, 12", 100W x 12 Channel
8P-EADN12D10|8P-EADN12D10
Sign In for Dealer Pricing
Pro Volume Controllers
Image of 8P-VC100WHLA
ADI # 8P-VC100WHLA
MODEL # 8P-VC100WHLA
Episode
Episode EVC-100S-WHLA Sliding Volume Control, 100W (Each)
8P-VC100WHLA|8P-VC100WHLA
Sign In for Dealer Pricing
Overview
Specifications
Documents

Product Overview

General Description

The FAP63TUC-W's 130o dispersion angle can reduce the number of loudspeakers necessary to achieve coverage in distributed systems with low ceilings. The loudspeaker component matches the performance of the legendary AtlasIED FA136 driver. High quality construction 6.5" coaxial cone type driver includes a 1" voice coil and high efficiency composite cone with polymer coated cloth surround. The 20mm coaxially mounted silk dome tweeter. A high sensitivity of 90dB average means less power may be required to achieve the desired SPL.

This loudspeaker is factory assembled in an optimally tuned and ported deep drawn enclosure and includes a specially designed 32-watt low saturation 70.7V / 100V transformer. A convenient front mounted selector switch allows tap selection without the need to remove the loudspeaker from the ceiling.

Three years of development has produced the most innovative, easily installed, and safety-secure ceiling loudspeakers in the professional audio market. Patented Safety First Mounting System protects from over-torquing the mounting doglegs during installation and potentially cracking or breaking the mounting system. The results are NO install tools required, NO over-torqued doglegs, NO rusted screws and QUICK installation.

Applications

AtlasIED's FAP63TUC-W combines superior coaxial loudspeaker performance with even dispersion and easy installation. A low profile enclosure and wide coverage make the FAP63TUC-W a perfect choice for low ceilings.

The FAP63TUC-W will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system. The FAP63TUC-W is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.

Main Features

  • 70.7V/100V
  • Patented Safety First Mounting System Enables Installation without Drill or Screwdriver
  • Improved Waveguide Provides up to 130° Dispersion
  • Ported Enclosure Provides Enhanced Low-Frequency Response
  • 4-Pole Detachable "Phoenix" Style Connector Allows Easy Pre-Wiring and Is Convenient for Daisy Chaining Additional Strategy Series Full Range Loudspeakers or Subwoofers
  • Speakers for Fire Alarm and Signaling Systems
  • Front Mounted Tap Selector Switch for Easy System Tuning
  • Easy Installation in Drop Tile or Sheetrock Ceilings Via C-Ring / V-Rail Tile Bridge (Included)
  • Safety Listed to UL1480, UL2043, and CAN/ULC-S541:2016
  • Equipped with 22 uF, 200 Volt mylar capacitor

General Information

Name: AtlasIED FAP63TUC-W FAP Strategy III Series 6.5" Full Range Coaxial In-Ceiling 32W Loudspeaker, White
Category: AtlasIED, Pro AV, Commercial Audio, Pro Speakers
UPC Code: 999999534660
Country of Origin: . Country of origin is subject to change.
