Image of AT-FC8T
Shop all AtlasIED

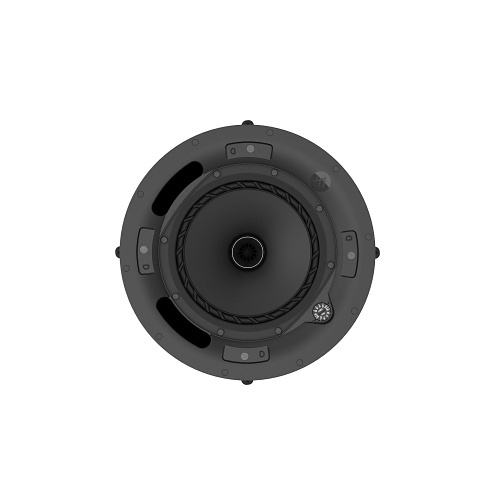

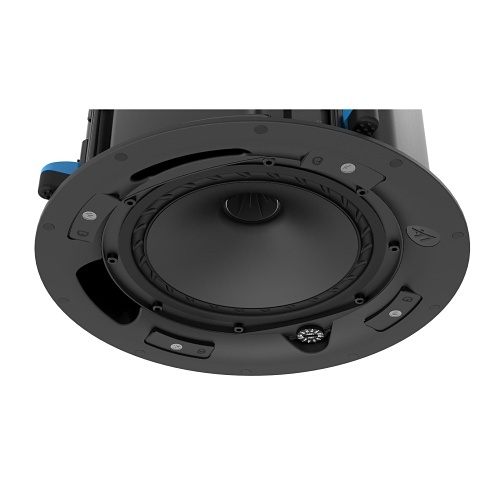

AtlasIED FC-8T 8" Premium Ceiling Speaker, Blind Mount

FC-8T|AT-FC8T
Shop all AtlasIED

AtlasIED FC-8T 8" Premium Ceiling Speaker, Blind Mount

FC-8T|AT-FC8T
Key Features
  • Patented toolless high travel secure-clamp mechanism for fast and trouble-free installation
  • Bezel-less grille, magnetically secured, removable logo. Allows for a single step painting process if necessary. No requirement for adaptors to accommodate optional square grilles
  • Ferrofluid cooled titanium HF with neodymium magnet system
Key Features
  • Patented toolless high travel secure-clamp mechanism for fast and trouble-free installation
  • Bezel-less grille, magnetically secured, removable logo. Allows for a single step painting process if necessary. No requirement for adaptors to accommodate optional square grilles
  • Ferrofluid cooled titanium HF with neodymium magnet system

Sign In for Dealer Pricing

Become an ADI Customer
Legrand
Key Features
  • Patented toolless high travel secure-clamp mechanism for fast and trouble-free installation
  • Bezel-less grille, magnetically secured, removable logo. Allows for a single step painting process if necessary. No requirement for adaptors to accommodate optional square grilles
  • Ferrofluid cooled titanium HF with neodymium magnet system
Image of AT-FC8T
AtlasIED

AtlasIED FC-8T 8" Premium Ceiling Speaker, Blind Mount

FC-8T | AT-FC8T

Please sign in to view pricing and availability and to add to cart.

Accessories

Battery Packs
Image of WT-OVRC1500U
ADI # WT-OVRC1500U
MODEL # WB-OVRC-UPS-1500-1
WattBox
WattBox WB-OVRC-UPS-1500-1 UPS Battery Pack for IP Power Conditioners, 1500VA
WB-OVRC-UPS-1500-1|WT-OVRC1500U
Sign In for Dealer Pricing
Pro Amplifiers
Image of 8P-EADN12D10
ADI # 8P-EADN12D10
MODEL # EA-DYN-12D-100
Episode
Episode EA-DYN-12D-100 Dynamic Series Class-D Amplifier, 12", 100W x 12 Channel
EA-DYN-12D-100|8P-EADN12D10
Sign In for Dealer Pricing
Pro Volume Controllers
Image of 8P-VC100WHLA
ADI # 8P-VC100WHLA
MODEL # EVC-100S-WHLA
Episode
Episode EVC-100S-WHLA Sliding Volume Control, 100W (Each)
EVC-100S-WHLA|8P-VC100WHLA
Sign In for Dealer Pricing
Overview
Specifications
Documents

Product Overview

The IsoFlare FC-8T is a full bandwidth, high sensitivity ceiling loudspeaker designed for the ultimate in fidelity, coverage, and aesthetics. The IsoFlare FC range is the new benchmark in point source technology for prestigious commercial environments. Decades of experience from acoustic and mechanical engineers specializing in this technology have honed existing skills complemented with the very latest in design & engineering techniques to bring IsoFlare to the premium commercial space in an integrated package. Unlike most ‘coax’ offerings, the IsoFlare driver exhibits excellent harmonic alignment between HF and LF sources, the effect of which is to deliver accurate and natural reproduction with superb tonal balance. Propagating a spherical wavefront, homogeneously aligned on all axes, the IsoFlare point source driver yields an even response throughout the listening area; a constant time delay over the entire frequency spectrum providing exceptional off-axis performance. The FC-8T is designed for applications requiring a combination of premium sonic quality for music and speech reinforcement with exceptional reliability, in an architect/designer/installer friendly solution.

Main Features

  • Patented toolless high travel secure-clamp mechanism for fast and trouble-free installation
  • Bezel-less grille, magnetically secured, removable logo. Allows for a single step painting process if necessary. No requirement for adaptors to accommodate optional square grilles
  • Ferrofluid cooled titanium HF with neodymium magnet system
  • Weather treated multi fiber cone; stiffness combined with controlled top end roll off, for an accurate midrange
  • Fluted Surround Technology, Conventional driver surround profiles can reflect energy back down the cone causing coloration
  • Optimized smooth transition baffle (no sharp edges which cause diffraction)
  • Full bandwidth exceptionally low insertion loss 60W 70/100V transformer
  • High-current premium crossover components (Air Core Inductors and Polypropylene Capacitors)
  • Easy Access Tap Rotary Selector Switch

General Information

Name: AtlasIED FC-8T 8" Premium Ceiling Speaker, Blind Mount
Category: AtlasIED, Pro AV, Commercial Audio, Pro Speakers
UPC Code: 612079703180
Country of Origin: China. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
