Altronix EFLOW102NX8D Power Supply, 12V DC, 10A with 8 Patch and PTC Fault Alarm Indicators, Extra Large Model
EFLOW102NX8D|AX-102NX8D
Altronix EFLOW102NX8D Power Supply, 12V DC, 10A with 8 Patch and PTC Fault Alarm Indicators, Extra Large Model
EFLOW102NX8D|AX-102NX8D
Key Features
- Converts 120VAC to 8 PTC protected 12VDC outputs
- 10 amps max output with unswitched aux. output
- Includes fire alarm disconnect feature
Key Features
- Converts 120VAC to 8 PTC protected 12VDC outputs
- 10 amps max output with unswitched aux. output
- Includes fire alarm disconnect feature
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Converts 120VAC to 8 PTC protected 12VDC outputs
- 10 amps max output with unswitched aux. output
- Includes fire alarm disconnect feature

Altronix
Altronix EFLOW102NX8D Power Supply, 12V DC, 10A with 8 Patch and PTC Fault Alarm Indicators, Extra Large Model
EFLOW102NX8D | AX-102NX8D
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

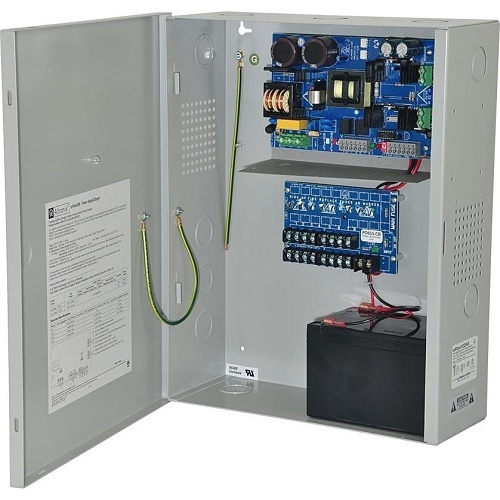

Introducing the Altronix EFLOW102NX8D Power Supply, a reliable solution for your power needs. This wall-mounted unit efficiently transforms a 120VAC 60Hz input into eight PTC protected, power-limited 12VDC outputs, delivering a maximum of 10 amps. It features an additional unswitched auxiliary output for added convenience. Safety is paramount with built-in fire alarm disconnect, over voltage protection, and low power disconnect to safeguard your standby batteries from deep discharge. Perfect for various applications, this power supply is designed to meet your demands. Don't miss out on this essential addition to your setup—order yours today!
Main Features
- Converts 120VAC to 8 PTC protected 12VDC outputs
- 10 amps max output with unswitched aux. output
- Includes fire alarm disconnect feature
- Over voltage and low power disconnect protection
- Prevents deep discharge of stand-by batteries
- Automatic switch to battery on AC failure
- Supervised fire alarm disconnect
- Short circuit and overload protection
- Visual indicators for AC and DC status
General Information
Name: Altronix EFLOW102NX8D Power Supply, 12V DC, 10A with 8 Patch and PTC Fault Alarm Indicators, Extra Large Model
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 782239952250
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number AX-102NX8D Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number EFLOW102NX8D Product Line eFlow Product Model eFlow102NX8D Product Name Eight (8) PTC Outputs Power Supply/Charger Product Series EFLOW Product Type Power Supply Sector Access Control Weight 8.6lb
-
Output Voltage 12V DC
-
NDAA Compliant Yes
-
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4-158°F
-
Depth 4.5" Height 15.5" Width 12.25"
-
Input Voltage 120V AC Output Current 10A
-
Limited Warranty Lifetime
-
Compatibility Access Control System Burglar Alarm System Fire Protective Signaling System Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Indoor/Outdoor Indoor
