Altronix AL1042ADA220 NAC Power Supply, 4 Class A or 4 Class B Outputs, 24VDC 10A, 220VAC, BC600 Enclosure, Red
AL1042ADA220|AX-AL1042AD0
Altronix AL1042ADA220 NAC Power Supply, 4 Class A or 4 Class B Outputs, 24VDC 10A, 220VAC, BC600 Enclosure, Red
AL1042ADA220|AX-AL1042AD0
Key Features
- 2-wire horn/strobe Sync mode allows audible notification appliances (horns) to be silenced while visual notification appliances (strobes) continue to operate
- Sync protocols include Potter/Amseco, Faraday, Gentex, System Sensor, and CooperWheelock
- Temporal Code 3, Steady Mode, Input to Output Follower Mode (maintains synchronization of notification appliances circuit)
Key Features
- 2-wire horn/strobe Sync mode allows audible notification appliances (horns) to be silenced while visual notification appliances (strobes) continue to operate
- Sync protocols include Potter/Amseco, Faraday, Gentex, System Sensor, and CooperWheelock
- Temporal Code 3, Steady Mode, Input to Output Follower Mode (maintains synchronization of notification appliances circuit)
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 2-wire horn/strobe Sync mode allows audible notification appliances (horns) to be silenced while visual notification appliances (strobes) continue to operate
- Sync protocols include Potter/Amseco, Faraday, Gentex, System Sensor, and CooperWheelock
- Temporal Code 3, Steady Mode, Input to Output Follower Mode (maintains synchronization of notification appliances circuit)

Altronix
Altronix AL1042ADA220 NAC Power Supply, 4 Class A or 4 Class B Outputs, 24VDC 10A, 220VAC, BC600 Enclosure, Red
AL1042ADA220 | AX-AL1042AD0
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

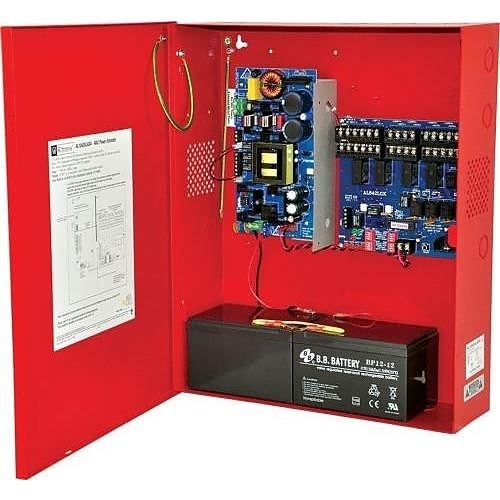

Introducing the Altronix AL1042ADA220 NAC Power Supply, a reliable and budget-friendly solution for your power needs. This versatile unit features four Class A or Class B outputs, delivering a robust 24VDC at 10A, making it ideal for expanding your Notification Appliance Circuit (NAC) while adhering to ADA requirements. Designed for seamless integration with any 24-volt Fire Alarm Control Panel, it also provides auxiliary power for system accessories. Housed in a durable BC600 enclosure and finished in a striking red, this power supply is both functional and aesthetically pleasing. Don't miss out on enhancing your fire alarm system—order the Altronix AL1042ADA220 today!
Main Features
- 2-wire horn/strobe Sync mode allows audible notification appliances (horns) to be silenced while visual notification appliances (strobes) continue to operate
- Sync protocols include Potter/Amseco, Faraday, Gentex, System Sensor, and CooperWheelock
- Temporal Code 3, Steady Mode, Input to Output Follower Mode (maintains synchronization of notification appliances circuit)
- Compatible with 12VDC or 24VDC fire panels
- Output loop supervision steered to input 1 or input 2
- Signal circuit trouble memory
- Common trouble input and output for external trouble signals tie-in
- Ground fault detection
General Information
Name: Altronix AL1042ADA220 NAC Power Supply, 4 Class A or 4 Class B Outputs, 24VDC 10A, 220VAC, BC600 Enclosure, Red
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number AX-AL1042AD0 Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number AL1042ADA220 Product Line ADA Product Model AL1042ADA220 Product Name 16-Door Altronix/Mercury Access and Power Integration Kit - Trove3M3 with 2-AL1024ULXB2, 2-ACM8, 2-PDS8, VR6, RSB2 Product Series ADA220 Product Type Access and Power Integration Kit Weight 14.8lb
-
Output Voltage 24V DC
-
NDAA Compliant Yes
-
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4-158°F
-
Depth 4.62" Height 18" Width 14.5"
-
Input Voltage 220V AC Output Current 2.5A|10A
-
Limited Warranty Lifetime
-
Environmental Certification RoHS Indoor/Outdoor Indoor
