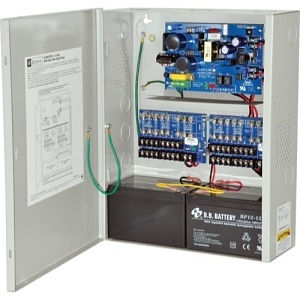

Altronix AL300ULXPD16 Power Supply Charger, 16 Fused Outputs, 12/24VDC at 2.5A, 115VAC, BC400 Enclosure
AL300ULXPD16
|AX-AL3UXPD16
Shop All Altronix
Altronix AL300ULXPD16 Power Supply Charger, 16 Fused Outputs, 12/24VDC at 2.5A, 115VAC, BC400 Enclosure
AL300ULXPD16 | AX-AL3UXPD16
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Altronix AL300ULXPD16 is a multi‑output power supply and battery charger that converts a 115VAC input into sixteen Class 2 power‑limited outputs selectable for 12VDC or 24VDC operation at up to 2.5A total current. Each output is fuse‑protected, electronically regulated, and protected against short circuit and thermal overload, making the unit suitable for access control, burglary, fire, and signaling applications. The unit features an integrated charger for sealed lead‑acid or gel batteries with automatic switchover to standby battery power during AC failure, zero voltage drop operation, and comprehensive supervision including AC failure, low battery, and battery presence monitoring via form “C” contacts. Visual LED indicators provide the status of AC, DC output, and battery conditions, and all components are housed in a BC400 steel enclosure designed for wall‑mount installation.
Main Features
- Converts 115VAC input into sixteen (16) Class 2 power‑limited DC outputs selectable for 12VDC or 24VDC operation
- Provides 2.5A total continuous output current with electronically regulated, filtered DC outputs
- Features sixteen individually fuse‑protected outputs, each rated for Class 2 applications
- Includes an integrated battery charger compatible with sealed lead‑acid or gel batteries with automatic switchover to standby battery power during AC loss and zero voltage drop operation
- Offers complete supervision and monitoring, including AC failure, low battery, and battery presence via form “C” relay contacts
- Provides short circuit and thermal overload protection for system and device safety
- Equipped with visual LED indicators for AC input, DC output, and battery status for fast diagnostics
- Housed in a BC400 steel wall‑mount enclosure, designed for secure installation and support of backup batteries
General Information
Name: Altronix AL300ULXPD16 Power Supply Charger, 16 Fused Outputs, 12/24VDC at 2.5A, 115VAC, BC400 Enclosure
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 782239938643
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number AX-AL3UXPD16 Brand Name Altronix Manufacturer Part Number AL300ULXPD16
