Altronix EFLOW104NK8 Dual Output Access Power Supply Charger, Fuse Outputs, 12/24VDC, 120VAC, BC400 Enclosure
EFLOW104NK8|AX-EFL104NK8
Altronix EFLOW104NK8 Dual Output Access Power Supply Charger, Fuse Outputs, 12/24VDC, 120VAC, BC400 Enclosure
EFLOW104NK8|AX-EFL104NK8
Key Features
- Includes an unswitched auxiliary output
Key Features
- Includes an unswitched auxiliary output
Altronix
Altronix EFLOW104NK8 Dual Output Access Power Supply Charger, Fuse Outputs, 12/24VDC, 120VAC, BC400 Enclosure
EFLOW104NK8 | AX-EFL104NK8
Please sign in to view pricing and availability and to add to cart.
Accessories
Overview
Specifications
Documents
Product Overview

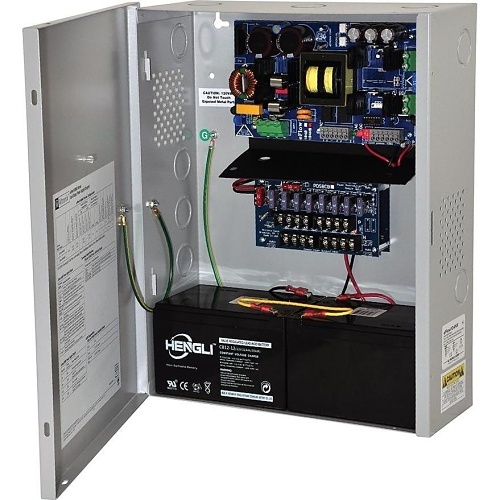

Introducing the Altronix EFLOW104NK8 Dual Output Access Power Supply Charger, designed to efficiently convert 120VAC 60Hz input into eight fuse-protected outputs of 12VDC or 24VDC, with a maximum capacity of 10A. This innovative sub-assembly kit features essential safety mechanisms, including fire alarm disconnect, over voltage protection, and low power disconnect to safeguard your standby batteries from deep discharge. Its dual input design allows seamless power management from two independent low voltage Altronix power supplies, ensuring reliable performance across eight individually controlled outputs. Upgrade your power supply system today with Altronix and experience unparalleled reliability!
Main Features
- Includes an unswitched auxiliary output
General Information
Name: Altronix EFLOW104NK8 Dual Output Access Power Supply Charger, Fuse Outputs, 12/24VDC, 120VAC, BC400 Enclosure
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 782239960712
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number AX-EFL104NK8 Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number EFLOW104NK8 Product Line eFlow Product Model EFLOW104NK8 Product Name Dual Output Power Supply/Charger, 8 fuse protected Auxiliary Class 2 power-limited outputs, 12VDC up to 6A and/or 24VDC up to 10A (240W total power),120VAC, BC400 Enclosure Product Type Dual Output Power Supply/Charger Sector Access Control Weight 9.4lb
-
Output Voltage 24V DC
-
NDAA Compliant Yes
-
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4-158°F
-
Depth 4.5" Height 15.5" Width 12"
-
Input Voltage 120V AC
-
Country of Origin US Environmental Certification cUL, RoHS, UL Environmentally Friendly Yes Indoor/Outdoor Indoor
