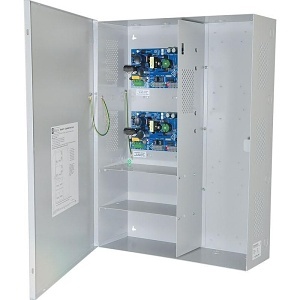

Altronix MAXIMAL11FE Power Supply Charger, Expandable, Dual 12/24V DC outputs at 3.5A each (12A max), 115V AC, FAI, LinQ2 Ready, BC800 Enclosure
MAXIMAL11FE|AX-MAX11FE
Altronix MAXIMAL11FE Power Supply Charger, Expandable, Dual 12/24V DC outputs at 3.5A each (12A max), 115V AC, FAI, LinQ2 Ready, BC800 Enclosure
MAXIMAL11FE|AX-MAX11FE
Key Features
- Expandable dual 12/24V DC outputs at 3.5A each
- Supports up to 12A total output
- 115V AC input for versatile installations
Key Features
- Expandable dual 12/24V DC outputs at 3.5A each
- Supports up to 12A total output
- 115V AC input for versatile installations
.jpg)
Key Features
- Expandable dual 12/24V DC outputs at 3.5A each
- Supports up to 12A total output
- 115V AC input for versatile installations
Altronix
Altronix MAXIMAL11FE Power Supply Charger, Expandable, Dual 12/24V DC outputs at 3.5A each (12A max), 115V AC, FAI, LinQ2 Ready, BC800 Enclosure
MAXIMAL11FE | AX-MAX11FE
Please sign in to view pricing and availability and to add to cart.
Accessories
Overview
Specifications
Documents
Product Overview
Introducing the Altronix MAXIMAL11FE Power Supply Charger, a versatile and expandable solution for your power needs. This innovative system offers dual outputs of 12V DC and 24V DC, each delivering 3.5A, with a maximum capacity of 12A. Designed for flexibility, it allows simultaneous operation of both voltages. The unit features essential monitoring for AC failure, low battery, and battery presence, ensuring reliable performance. Its robust enclosure accommodates up to four 12V DC/12AH batteries, making it ideal for system designers and installers. Upgrade your power system today with the Altronix MAXIMAL11FE and experience unmatched reliability!
Main Features
- Expandable dual 12/24V DC outputs at 3.5A each
- Supports up to 12A total output
- 115V AC input for versatile installations
- Includes AC fail and low battery monitoring
- Compatible with LinQ2 technology
- BC800 Enclosure holds up to 4 batteries
- UL Listed for safety and reliability
- Ideal for system designers and installers
- Operating temperature from 0°C to 49°C (32°F to 120°F)
- Supports sealed lead acid or gel batteries
General Information
Name: Altronix MAXIMAL11FE Power Supply Charger, Expandable, Dual 12/24V DC outputs at 3.5A each (12A max), 115V AC, FAI, LinQ2 Ready, BC800 Enclosure
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 782239952625
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number AX-MAX11FE Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number MAXIMAL11FE Product Line Maximal Product Model MAXIMAL11FE Product Name Power Supply/Charger, Expandable, Dual 12/24VDC outputs @ 3.5A each (12A max), 115VAC, FAI, LinQ2 Ready, BC800 Enclosure Product Series Maximal Product Type Power Supply/Charger Sector Access Control Weight 32.1lb
-
Output Voltage 12V DC, 24V DC
-
NDAA Compliant Yes
-
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4-158°F
-
Depth 6.25" Height 26" Width 19"
-
Input Voltage 120V AC Output Current 3.5A
-
Country of Origin US Environmental Certification cUL, RoHS, UL Environmentally Friendly Yes Indoor/Outdoor Indoor
