Altronix MAXIMAL7D Access Power Controller with Power Supply Charger, 16 PTC Class Relay Outputs, 24VDC at 9A, 115VAC, BC800 Enclosure
MAXIMAL7D|AX-MAX7D
Altronix MAXIMAL7D Access Power Controller with Power Supply Charger, 16 PTC Class Relay Outputs, 24VDC at 9A, 115VAC, BC800 Enclosure
MAXIMAL7D|AX-MAX7D
Key Features
- 115V AC 60Hz, 4.2 A input
- 24V DC outputs
- Maximum output current: 24V DC at 9.4 A
Key Features
- 115V AC 60Hz, 4.2 A input
- 24V DC outputs
- Maximum output current: 24V DC at 9.4 A
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 115V AC 60Hz, 4.2 A input
- 24V DC outputs
- Maximum output current: 24V DC at 9.4 A

Altronix
Altronix MAXIMAL7D Access Power Controller with Power Supply Charger, 16 PTC Class Relay Outputs, 24VDC at 9A, 115VAC, BC800 Enclosure
MAXIMAL7D | AX-MAX7D
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

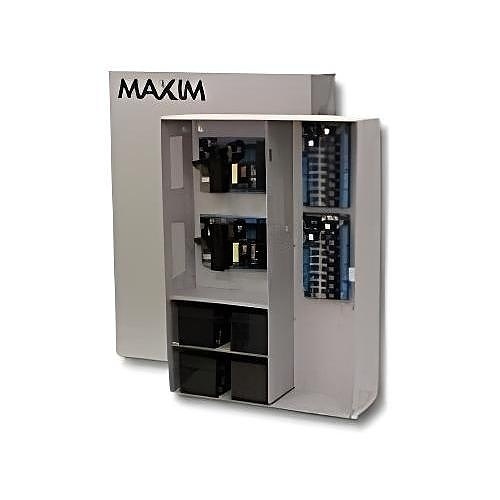

Introducing the Altronix MAXIMAL7D Access Power Controller, designed to efficiently manage power for your access control systems and accessories. This robust unit transforms a 115VAC input into sixteen independently controlled 24VDC outputs, each protected by PTC. It seamlessly integrates with various access control devices such as mag locks and electric strikes, operating in both fail-safe and fail-secure modes. The FACP interface supports emergency egress and alarm monitoring, ensuring safety and reliability. With its versatile features, the MAXIMAL7D is the perfect solution for your security needs. Don't miss out on enhancing your access control system—order yours today!
Main Features
- 115V AC 60Hz, 4.2 A input
- 24V DC outputs
- Maximum output current: 24V DC at 9.4 A
- Class 2 Rated power limited outputs
- Sixteen (16) independently controlled outputs can be Fail-Safe and/or Fail-Secure power outputs
General Information
Name: Altronix MAXIMAL7D Access Power Controller with Power Supply Charger, 16 PTC Class Relay Outputs, 24VDC at 9A, 115VAC, BC800 Enclosure
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers
UPC Code: 782239947706
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number AX-MAX7D Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number MAXIMAL7D Product Line Maximal Product Model MAXIMAL7D Product Name Access Power Controller w/ Power Supply/Charger, 16 PTC Class 2 Relay Outputs, 24VDC at 9A, 115VAC, BC800 Enclosure Product Series Maximal Product Type Power Supply Sector Access Control Weight 32.25lb
-
Number of Doors 16 Output Voltage 24V DC
-
NDAA Compliant Yes
-
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4-158°F
-
Depth 6.25" Height 26" Width 19"
-
Input Voltage 120V AC Output Current 2.5A
-
Limited Warranty Lifetime
-
Country of Origin US Indoor/Outdoor Indoor
