Product Overview

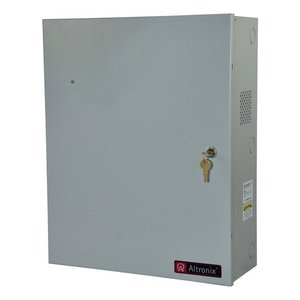

Altronix MaxFit7F16APS Access Power Controller distributes and switches power to access control systems and accessories. It converts a 120VAC, 60Hz input into sixteen (16) distributed 24VDC fuse protected outputs and sixteen (16) independently controlled 12VDC or 24VDC fuse protected relay outputs. Fail-Safe/Fail-Secure power outputs may be converted to dry form “C†contacts. Relays are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) relayed outputs.
Main Features
- 24VDC at 10A power supply/charger
- Convenient knockout configuration
- 16 AWG powder-coated steel enclosure simplifies board layout and wire management
- Enclosure accommodates up to four (4) 12VDC/12AH batteries
General Information
Name: Altronix MAXFIT7F16APS Access Power Controller
Category: Altronix, Access Control, Power Products, Access Power Controllers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number AX-MAXFITF1 Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number MAXFIT7F16APS Product Model MAXFIT7F16APS Product Name Access Power Controller Kit - BC750 enclosure with eFlow104NB, (2) ACMS8, VR6, PD16W Product Type Access Power Controller Kit Temperature Range 32-122°F Weight (Approximate) (g) 12745.95 Â
-
Output Voltage 12V DC, 24V DC Â
-
Shipping Weight (Approximate) (g) 15467.5 Â
-
Output Voltage (V DC) 12, 24 Â
-
Output Voltage (V) 12, 24 Â
-
Depth 6.25" Depth (mm) 159 Height 20.5" Height (mm) 520.7 Weight (Approximate) 28.1 lb Width 16.5" Width (mm) 419.1 Â
-
Input Voltage 120V AC, 24V DC Input Voltage (V AC) 120 Input Voltage (V DC) 24 Output Current 10A Output Current (A) 10 Â
-
Limited Warranty Lifetime Â
-
Environmental Certification RoHS Â
