Product Overview

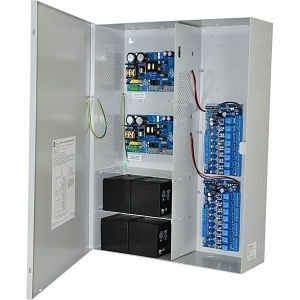

Maximal33FV Access Power Controller distributes and switches power to access control systems and accessories. It converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into sixteen (16) independently controlled 12VDC or 24VDC fuse protected outputs. These Fail-Safe/Fail-Secure power outputs may be converted to dry form "C" contacts. The outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Units will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs. All interconnecting equipment must be UL Listed.
General Information
Name : Altronix MAXIMAL33FV Access Power Controller , Altronix
Category : Access Power Controllers
UPC Code : 782239954759
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : AX-MAXIM33FV
Brand Name : Altronix
Manufacturer : Altronix Corporation
Manufacturer Part Number : MAXIMAL33FV
Product Model : Maximal33FV
Product Name : MAXIMAL33FV Access Power Controller
Product Type : Access Power Controller
Weight (Approximate) (g) : 15100
Physical Characteristics
Application/Usage : Access Control System, Alarm, Electric Strike, Fire Alarm, Indoor, Keypad, Magnetic Door Holder, Magnetic Lock, Power Supply, Push Button, Relay
Depth : 6.3"
Depth (mm) : 158.750
Form Factor : Wall Mount
Height : 26"
Height (mm) : 660.400
Weight (Approximate) : 33.29 lb
Width : 19"
Width (mm) : 482.600
Power Description
Input Voltage : 220V AC
Power Source : Power Supply
Warranty
Limited Warranty : Lifetime
Miscellaneous
Environmental Certification : RoHS
Environmentally Friendly : Yes
Package Contents : <li>1 x Enclosurer<li>2 x Power Supply Charger<li>2 x Access Power Controller
