Overview
Specifications
Documents
Product Overview

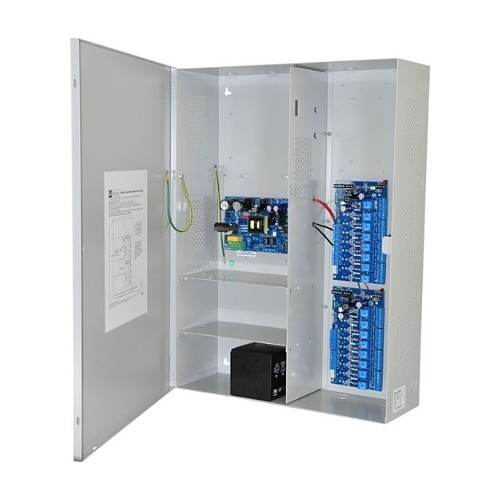

Introducing the Altronix MAXIMAL5DV AL1012XB220 W/2-ACM8CB, a powerful solution for managing access control systems and accessories. This unit efficiently converts a 220VAC input into sixteen independently controlled 12VDC outputs, all protected by PTC. Each output can be activated through various triggers, including access control systems and push buttons, making it versatile for different hardware like mag locks and electric strikes. With options for Fail-Safe and Fail-Secure modes, plus a fire alarm disconnect feature, this unit ensures safety and reliability. Enhance your security setup today with the Altronix MAXIMAL5DV!
Main Features
- Sixteen (16) independently controlled (16) Fail-Safe and/or Fail-Secure power outputs
- Sixteen (16) auxiliary power outputs (unswitched)
- Output fuses are rated at 2.5A
- Filtered and electronically regulated outputs
- Alarm output relay indicates that FACP input is triggered
- Built-in charger for sealed lead acid or gel type batteries
- Instantaneous transfer to stand-by batteries
General Information
Name: Altronix MAXIMAL5DV Access Power Controller
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number AX-MAXIMAL5D Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number MAXIMAL5DV Packaged Quantity 4 Product Line Maximal Product Model MAXIMAL5DV Product Name Access Power Controller w/ Power Supply/Charger, 16 PTC Class 2 Relay Outputs, 12VDC at 9A, 220VAC, BC800 Enclosure Product Series Maximal Product Type Access Power Controller Sector Access Control Weight 42.3lb
Number of Doors 16 Output Voltage 12V DC
NDAA Compliant Yes
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4-158°F
Depth 6.25" Height 26" Width 19"
Input Voltage 220V AC Output Current 9A
Limited Warranty Lifetime
Environmental Certification RoHS Indoor/Outdoor Indoor Package Contents 1 x Enclosure, 26"H x 19"W x 6.25"D, Grey, 19 Gauge, Indoor, 1 x Power Supply Charger, Single Fused Output, 12VDC at 10A, 220VAC, Board, 2 x Access Power Controller, 8 PTC Class 2 Relay Outputs, FAI, Board
