Altronix MAXFIT35FE 12/24 VDC 6A and 12V 10A Power Supply, MAXF Enclosure
MAXFIT35FE|AX-MAXIT3FE
Altronix MAXFIT35FE 12/24 VDC 6A and 12V 10A Power Supply, MAXF Enclosure
MAXFIT35FE|AX-MAXIT3FE
Key Features
- Filtered and electronically regulated outputs
- Thermal and short circuit protection with auto reset
- Additional aux. Class 2 power-limited outputs rated @ 1A
Key Features
- Filtered and electronically regulated outputs
- Thermal and short circuit protection with auto reset
- Additional aux. Class 2 power-limited outputs rated @ 1A
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Filtered and electronically regulated outputs
- Thermal and short circuit protection with auto reset
- Additional aux. Class 2 power-limited outputs rated @ 1A

Altronix
Altronix MAXFIT35FE 12/24 VDC 6A and 12V 10A Power Supply, MAXF Enclosure
MAXFIT35FE | AX-MAXIT3FE
Please sign in to view pricing and availability and to add to cart.
Accessories
Overview
Specifications
Documents
Product Overview

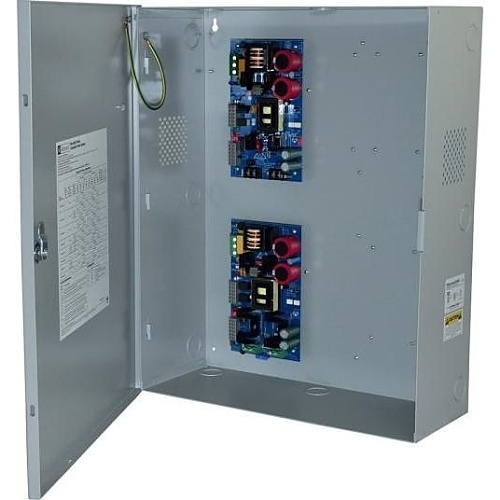

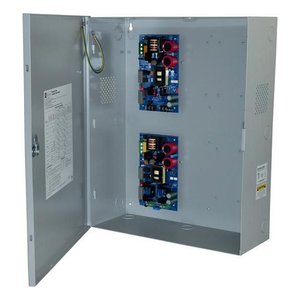

Introducing the Altronix MAXFIT35FE Dual Power Supply Expandable Power Systems, designed for system designers and installers seeking optimal power solutions in a compact and cost-effective enclosure. This versatile unit delivers both 12VDC and 24VDC through two single output power supply/chargers, ensuring flexibility for various applications. It features monitoring for AC failure, low battery, and battery presence, providing peace of mind. The enclosure is spacious enough to house up to four 12VDC/12AH batteries, making it an ideal choice for reliable power management. Don't miss out on this essential power solution—order yours today!
Main Features
- Filtered and electronically regulated outputs
- Thermal and short circuit protection with auto reset
- Additional aux. Class 2 power-limited outputs rated @ 1A
- Supervision: AC Fail, Battery Fail and Battery Presence, Low power shutdown
- Supervised fire alarm disconnect
- Built-in 30-50% faster charger for sealed lead acid or gel type batteries
- Low power cutoff - protects stand-by batteries from deep discharge
- AC input and DC output LED indicators
- Enclosure accommodates up to four (4) 12VDC/12AH batteries
General Information
Name: Altronix MAXFIT35FE 12/24 VDC 6A and 12V 10A Power Supply, MAXF Enclosure
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number AX-MAXIT3FE Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number MAXFIT35FE Product Line MaxFit Product Model MAXFIT35FE Product Name Dual Power Supply Expandable Power Systems, 12VDC/24VDC @ 6A; 12VDC @ 10A, BC750 Enclosure Product Series MaxFit Product Type Power Systems Sector Access Control Weight 21.2lb
-
Output Voltage 12V DC, 24V DC
-
NDAA Compliant Yes
-
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4-158°F
-
Depth 6.25" Height 20.5" Width 16.5"
-
Input Voltage 120V AC
-
Limited Warranty Lifetime
-
Indoor/Outdoor Indoor
