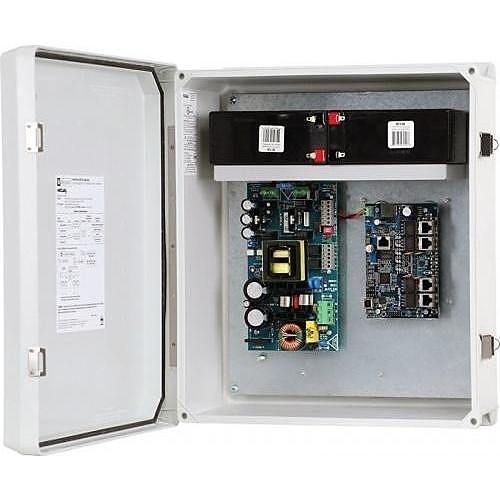

Altronix NETWAY5PQWPX 5-Port Managed Hardened PoE+ Switch with Power Supply / Charger, Outdoor Enclosure WP2, IP66
NETWAY5PQWPX
|AX-NET5PQWPX
Shop All Altronix
Altronix NETWAY5PQWPX 5-Port Managed Hardened PoE+ Switch with Power Supply / Charger, Outdoor Enclosure WP2, IP66
NETWAY5PQWPX | AX-NET5PQWPX
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Introducing the Altronix NETWAY5PQWPX, a robust 5-Port Managed Hardened PoE+ Switch designed for outdoor use. This powerful switch delivers reliable power to up to four IP devices, including PoE access controllers and cameras, through a single Ethernet cable, making it ideal for integrating network door access systems with video surveillance. The weatherproof enclosure supports two 12V DC / 7AH batteries, ensuring optimal performance even in challenging conditions. With LINQ technology, you can manage your network effortlessly. Don't miss out on enhancing your security setup—order the Altronix NETWAY5PQWPX today!
Main Features
- Four (4) 10/100/1000 Mbps PoE/PoE+ (up to 30W) ports
- IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant
- Built-in charger for sealed lead acid or gel type batteries
- Automatic switch over to stand-by battery when AC fails
- PoE Activity LED indicators
- Management interface software included (USB flash drive)
- VLAN (Virtual Local Area Networks) Subnetwork allows for the grouping together of devices for improved network traffic and higher security
- NEMA4/4X, IP66 Rated enclosure for outdoor use
- Accommodates two (2) 12VDC/7AH batteries
- Features embedded LINQ Technology to remotely monitor, control, and report power/diagnostics
General Information
Name: Altronix NETWAY5PQWPX 5-Port Managed Hardened PoE+ Switch with Power Supply / Charger, Outdoor Enclosure WP2, IP66
Category: Altronix, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 782239975662
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number AX-NET5PQWPX Brand Name Altronix Manufacturer Part Number NETWAY5PQWPX Product Line NetWay Product Model NETWAY5PQWPX Product Series NetWay
Network Switch Type Managed
Ingress Protection Rating IP66 NDAA Compliant Yes
Storage Temperature (T-T) -40-185°F
Frequency 60 Hz Input Voltage 120V AC Power over Ethernet (PoE) Yes
Certifications NEMA 4
