Altronix NetWay4EWP Outdoor PoE+ Hardened Switch, One 1Gb SFP Port, 10/100/1000 PoE/PoE+ Ports or Hi-PoE Ports

Brand: Altronix
ADI #:AX-NETWA4EWP Model #: NETWAY4EWP  Name: Altronix NetWay4EWP Outdoor PoE+ Hardened Switch, One 1Gb SFP Port, 10/100/1000 PoE/PoE+ Ports or Hi-PoE Ports
  • Effectively reduces downtime with improved network performance
  • with PoE+ Port, transfer data and up to 25.5W of power on a single cable to?placesWhere a power outlet is not present
  • Quickly and easily set up aWired network with 4 networking ports

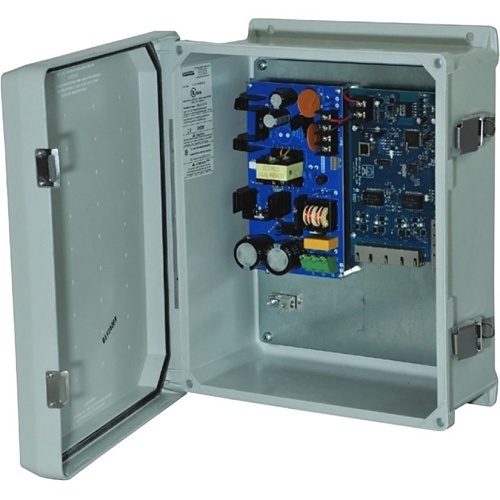

Altronix NetWay4EWP 4-Port PoE+ Hardened Switch

Product Overview

Altronix NetWay4EWP Outdoor PoE+ Hardened Switch provides a 1Gb SFP port and four (4) PoE+ (30W) ports or up to two (2) Hi-PoE (60W) ports. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control, and report power and diagnostics from anywhere.

General Information

Name : Altronix NetWay4EWP Outdoor PoE+ Hardened Switch, One 1Gb SFP Port, 10/100/1000 PoE/PoE+ Ports or Hi-PoE Ports , Altronix
Category : Network Switches
UPC Code : 782239954575
Country of Origin : United States. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : AX-NETWA4EWP
Brand Name : Altronix
Manufacturer : Altronix Corporation
Manufacturer Part Number : NETWAY4EWP
NDAA Compliant : Yes
Product Model : NetWay4EWP
Product Name : 4-Port PoE+ Hardened Switch
Product Type : Ethernet Switch
Weight (Approximate) (g) : 4681.073

Technical Information

Media Type Supported : Optical Fiber, Twisted Pair
Power Consumption : 120W

I/O Expansions

Expansion Slot Type : SFP (mini-GBIC)
Number of SFP Slots : 1
Number of Total Expansion Slots : 1

Interfaces/Ports

Modular : Yes
Network (RJ-45) : Yes
Port/Expansion Slot Details : 1 x Gigabit Ethernet Expansion Slot, 4 x Gigabit Ethernet PoE+
Total Number of Network Ports : 4

Management & Protocols

Manageable : Yes

Media & Performance

Network Technology : 10/100/1000Base-T, 1000Base-X

Network & Communication

Ethernet Technology : Gigabit Ethernet
Layer Supported : 2
Networking Standards : IEEE 802.3af, IEEE 802.3at

Physical Characteristics

Depth : 5.6"
Depth (mm) : 141.986
Form Factor : Enclosure, Pole Mount
Height : 13.3"
Height (mm) : 338.074
Weight (Approximate) : 10.32 lb
Width : 11.3"
Width (mm) : 287.274

Power Description

Frequency : 50 Hz|60 Hz
Frequency (Hz) : 50, 60
Input Voltage : 120V AC, 230V AC
Input Voltage (V AC) : 120, 230
PoE (RJ-45) Port : Yes
PoE Budget : 30W
PoE Budget (W) : 30
Power Consumption (W) : 120.000
Power Source : Power Supply

Warranty

Limited Warranty : Lifetime

Miscellaneous

Environmental Certification : RoHS
Environmentally Friendly : Yes
