Product Overview

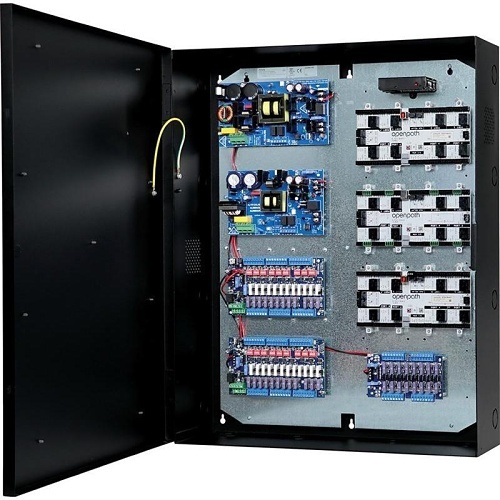

Introducing the Altronix T2PHK7524 Access Power Controller, a comprehensive solution designed for efficient access control management. This kit features a Trove2 enclosure and a TCV2 Openpath/Altronix backplane, providing robust power with one 24VDC at 10A and one 12VDC at 10A power supply/charger. It includes two dual input access control modules with twelve fuse-protected outputs and a sixteen output power distribution module. Capable of supporting up to sixteen doors, this system simplifies board layout and wire management, significantly reducing installation time and labor costs. Enhance your security setup today with the Altronix T2PHK7524!
Main Features
- Includes Trove2 enclosure for organized setup
- 24VDC and 12VDC power supply/charger
- Supports up to 16 doors in a single enclosure
- Fuse protected output for safety
- Simplifies board layout and wire management
- Reduces installation time and labor costs
- Battery charging capacity up to 65AH
- Operating temperature from 0°C to 49°C (32°F to 120°F)
- High relative humidity tolerance of 85%
- Compact design with efficient power distribution
General Information
Name: Altronix T2PHK7524 Access Power Controller
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers
UPC Code: 782239971893
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number AX-T2PH7524 Brand Name Altronix Manufacturer Part Number T2PHK7524 Product Line Trove Product Model T2PHK7524 Product Name 24-Door Altronix/Openpath Access and Power Integration Kit with Fused Outputs - Trove2CV2 with AL1024ULXB2, AL1012ULXB2, (2) ACMS12, PDS16. Trove2 Series Product Series Trove Kit Product Type Power Integration Weight 49.8 lb
-
Number of Doors 24
-
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4°F-158°F
-
Depth 6.5" Height 27.25" Width 21.5"
-
Input Voltage 115V AC
-
Mount Type Wall Mount
-
Country of Origin US Indoor/Outdoor Indoor
