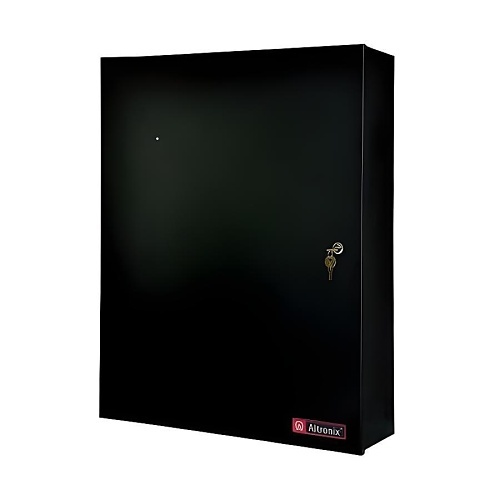

Altronix T3MK77F16DQNF Mercury 16-Door Access and Power Integration Enclosure with Backplane for Netflix
T3MK77F16DQNF|AX-T3MK77QNF
Altronix T3MK77F16DQNF Mercury 16-Door Access and Power Integration Enclosure with Backplane for Netflix
T3MK77F16DQNF|AX-T3MK77QNF
Key Features
- Accommodates the following Mercury controllers, EP1502, MR52, MR16IN, MR16OUT, EP2500, MUX8
- Convenient knockout configuration, Single 2.415" diameter knockout located top of enclosure, Two (2) double knockouts (1.948" and 1.5"), Thirteen (13) double knockouts (1.115" and 1.362")
- 16 AWG galvanized steel backplane simplifies board layout and wire management
Key Features
- Accommodates the following Mercury controllers, EP1502, MR52, MR16IN, MR16OUT, EP2500, MUX8
- Convenient knockout configuration, Single 2.415" diameter knockout located top of enclosure, Two (2) double knockouts (1.948" and 1.5"), Thirteen (13) double knockouts (1.115" and 1.362")
- 16 AWG galvanized steel backplane simplifies board layout and wire management
Key Features
- Accommodates the following Mercury controllers, EP1502, MR52, MR16IN, MR16OUT, EP2500, MUX8
- Convenient knockout configuration, Single 2.415" diameter knockout located top of enclosure, Two (2) double knockouts (1.948" and 1.5"), Thirteen (13) double knockouts (1.115" and 1.362")
- 16 AWG galvanized steel backplane simplifies board layout and wire management
Altronix
Altronix T3MK77F16DQNF Mercury 16-Door Access and Power Integration Enclosure with Backplane for Netflix
T3MK77F16DQNF | AX-T3MK77QNF
Please sign in to view pricing and availability and to add to cart.
Accessories
Control Panel Cabinets & Enclosures
ADI # AX-TROVE3BWC
MODEL # TROVE3BWC
TROVE3BWC|AX-TROVE3BWC
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Introducing the Altronix T3MK77F16DQNF Mercury 16-Door Access and Power Integration Enclosure, designed for seamless integration and efficiency. This comprehensive kit features the Trove3 enclosure paired with the TM3 Mercury/Altronix backplane, equipped with dual 24VDC at 10A power supply/chargers. It includes two PTC protected output access control modules and two power distribution modules, supporting various Mercury/Lenel board combinations for up to sixteen doors. The Trove design enhances board layout and wire management, significantly cutting down installation time and labor costs. Elevate your security system today with this reliable solution!
Main Features
- Accommodates the following Mercury controllers, EP1502, MR52, MR16IN, MR16OUT, EP2500, MUX8
- Convenient knockout configuration, Single 2.415" diameter knockout located top of enclosure, Two (2) double knockouts (1.948" and 1.5"), Thirteen (13) double knockouts (1.115" and 1.362")
- 16 AWG galvanized steel backplane simplifies board layout and wire management
- Filtered and electronically regulated outputs
- Thermal and short circuit protection with auto reset
- AC input and DC output LED indicators
- Supervision, AC Fail, Low Battery and Battery Presence, Low power shutdown
- Built-in charger for sealed lead acid or gel type batteries
- Instantaneous transfer to stand-by batteries
General Information
Name: Altronix T3MK77F16DQNF Mercury 16-Door Access and Power Integration Enclosure with Backplane for Netflix
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 782239960668
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number AX-T3MK77QNF Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number T3MK77F16DQNF Product Line Trove Product Model T3MK77F16DQNF Product Name Altronix T3MK77F16DQNF 16-Door Mercury Access and Power Integration Kit Product Series Trove Kit Product Type Access and Power Integration Kit Sector Access Control Weight 85.6lb
-
Number of Doors 16 Output Voltage 12V DC, 24V DC
-
NDAA Compliant Yes
-
Depth 7.06" Height 36.12" Width 30.13"
-
Input Voltage 120V AC Output Current 10A
-
Compatibility Mercury controllers - EP1502, MR52, MR16IN, MR16OUT, EP2500, MUX8 Country of Origin US Environmental Certification UL
