Product Overview

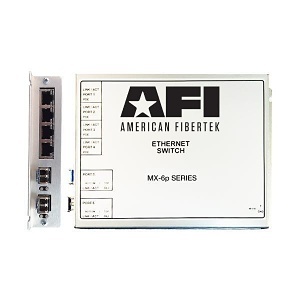

The American Fibertek MX-6p-PoE Series transmits and receives (4) copper 10/100 Base-TX Ethernet signals at the RJ45 ports and (2) optical 1000 Base-X over 1 or 2 optical fibers. The system is comprised of two or more units forming a communications link.
The Series MX-6p-PoE Series also sources power to devices from the RJ45 ports over the copper connection. All 4 RJ45 ports may be used to deliver dc power (802.3af 15 watts) or (802.at 30 watts) to PD devices.
The MX-6p-PoE is targeted for applications where the customer has 48 volts available (such as in security monitoring of solar farms). An external 48 volt power supply, provided by the customer, needs to provide the required watts for the application. The recommended watts for 4 ports of 802.3af and 802.3at is 70 watts and 130 watts respectively.
Main Features
- Transmits 4 copper 10/100 Base-TX Ethernet signals
- Supports 2 optical 1000 Base-X over 1 or 2 fibers
- Provides PoE with 802.3af (15W) and 802.3at (30W)
- Ideal for 48V applications like solar farm security
- Requires external 48V power supply from customer
- Requires external 48V power supply from customer
General Information
Specifications
-
ADI Part Number AZ-MX6PPOE Brand Name American Fiberteck Manufacturer American Fibertek, Inc Manufacturer Part Number MX-6P-POE Product Model MX-6p-PoE Product Name Mini 6 Port Ethernet Switch with PoE Product Type Ethernet Switch
-
Media Type Supported Twisted Pair
-
Expansion Slot Type SFP Number of SFP Slots 2 Number of Total Expansion Slots 2 Shared SFP Slot No
-
Total Number of Network Ports 6
-
Network Technology 10/100Base-TX, 1000Base-X
-
Ethernet Technology Fast Ethernet, Gigabit Ethernet Layer Supported 2
-
Depth 1" Width 6"
-
PoE (RJ-45) Port Yes Power Source Power Supply
-
Country of Origin US
