Product Overview

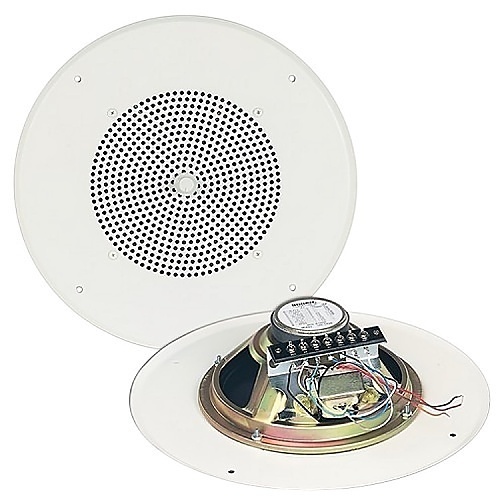

Bogen’s Ceiling Speaker Assemblies consist of an 8" Cone Speaker (S86 or S810) pre-assembled onto a 13" steel ceiling grille painted with off-white (PG8W) or bright white (PG8U) enamel. Options for these assemblies are recessed volume control (VR), volume control with knob (VK), and rear-mounted screw terminal strip for power taps (BR).
Main Features
- 4-watt capacity
- 8" cone speaker for excellent audio quality
- 6 different power taps available (4, 2, 1, 1/2, 1/4, 1/8 W)
- T725 4-watt transformer
- Off-white enamel over steel grille (“W” versions)
- Bright white enamel over steel grille (“U” versions)
- Pre-assembled for faster installation
- Works with both 70V and 25V amplifier outputs
- Available with volume control – recessed or with knob (VR and VK models only)
- 6 oz. or 10 oz. magnet weights
General Information
Name: Bogen S86 Speaker 7 RMS
Category: Bogen, Pro AV, Commercial Audio, Pro Speakers
UPC Code: 765368480733
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number BO-S86 Brand Name Bogen Manufacturer Bogen Communications International, Inc Manufacturer Part Number S86 Product Model S86 Product Name S86 Speaker Product Series S86 SERIES Product Type Speaker
-
Impedance 8 ohms Sensitivity 95dB
-
Maximum Frequency Response 12 kHz Minimum Frequency Response 50 Hz RMS Output Power 7W
-
TAA Compliant No
-
Application/Usage Background music, Paging, Security, Talkback Color White
-
Mount Type Ceiling Mount
-
Limited Warranty 2-Year
-
Country of Origin CN
