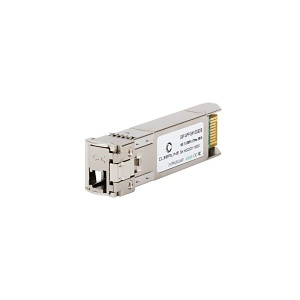

Cleerline SSF-SFP-SM10GBDB 10G SFP+ Transceiver SM BiDi T:1330/R:1270nm, 20Km Max Reach
SSF-SFP-SM10GBDB
|CC-CNS10GBDB
Shop all Cleerline
Cleerline SSF-SFP-SM10GBDB 10G SFP+ Transceiver SM BiDi T:1330/R:1270nm, 20Km Max Reach
SSF-SFP-SM10GBDB | CC-CNS10GBDB
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Cleerline™ Bi-directional (BiDi) 10G SFP+ transceivers are high-performance, cost-effective modules supporting 20 km transmission distance with single-mode fiber. This SFP module accepts 1 LC connector and must be installed as a pair: SSF-SFP-SM10GBDA matched with SSF-SFPSM10GBDB. These single-mode transceivers are small form factor pluggable modules for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. The SFP+ 20-pin connector allows hot plug capability. Modules are designed for single-mode fiber and operate at a nominal wavelength of 1270nm or 1330nm. The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. Transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
Main Features
- Supports 9.95Gb/s to 10.3Gb/s data rates
- Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
- Single 3.3V Supply
- Up to 20km on 9/125um SMF
- B:1330nm DFB Laser transmitter,1270nm receiver
- Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
- SFP+ MSA SFF-8431 Compliant
- Digital Diagnostic SFF-8472 Compliant
- RoHS compliant and Lead Free
- Operating case temperature:
General Information
Name: Cleerline SSF-SFP-SM10GBDB 10G SFP+ Transceiver SM BiDi T:1330/R:1270nm, 20Km Max Reach
Category: Data Comm & Networking, Network Adapters, SFP Modules
UPC Code: 672975372576
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number CC-CNS10GBDB Brand Name Cleerline Manufacturer Part Number CN-SSF-SFP-SM10GBDB Product Type SFP Transceiver
Fiber Optic Mode Single-mode
