Cleerline SSF-SFP-RJ45-10G-UK 10G Ethernet to 10G Base-X SFP+ Converter, DIP Switch, AC UK Adapter Included

SSF-SFP-RJ45-10G-UK

|

CC-CNSSF10GU

Sign In for Dealer Pricing

New to ADI?Become a Customer

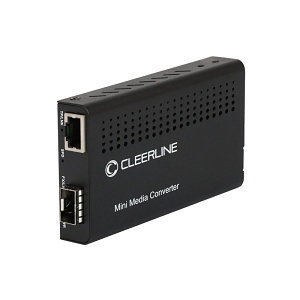

Image of CC-CNSSF10GU
Shop all Cleerline

Cleerline SSF-SFP-RJ45-10G-UK 10G Ethernet to 10G Base-X SFP+ Converter, DIP Switch, AC UK Adapter Included

SSF-SFP-RJ45-10G-UK | CC-CNSSF10GU

Please sign in to view pricing, availability, and to add to cart.

Overview
Specifications
Documents

Product Overview

The SSF-SFP-RJ45-10G-UK is a multispeed 10G Ethernet 10G Base-T to 10G Base-X SFP+ slot non-managed stand-alone media converter, equipped with DIP switches for configuration options. The SFP+ slot allows both 1G or 10G Ethernet operation, and can accept all SFP types, including multimode, single-mode, CWDM, DWDM, or BiDi. BiDi allows bi-directional transmission over a single strand of fiber. DIP switches allow set-up in either fixed 10G mode, fixed 1G mode, or 10/100/1G/10G auto negotiation on a copper port. LED indicators signal the power status, UTP and FX port speed and link status of each port UK Power Supply Included

Main Features

  • 100M/1G/10G Base-T to 1G/10G Base-X SFP+ slot Converter
  • Data transparent: port speed set up via DIP sw
  • Supports any type of SFP+: MM, SM, CWDM, DWDM or BiDi types
  • DIP settings for fiber speed and LFP functions
  • Forward 9Kbytes Jumbo packets in transparent converter mode
  • Supports SFP+ hot swap
  • Auto-Negotiation & Auto MDI/MDI-X
  • Supports Q in Q double tagged frame transparent
  • Supports IEEE 802.1Q Tag VLAN pass thru
  • Aggregates into SSF-1RUME-12AC chassis (12 slots on 1RU space)

General Information

Name: Cleerline SSF-SFP-RJ45-10G-UK 10G Ethernet to 10G Base-X SFP+ Converter, DIP Switch, AC UK Adapter Included
Category: Data Comm & Networking, Network Adapters, SFP Modules
UPC Code: 658580645892
Country of Origin: United States. Country of origin is subject to change.
