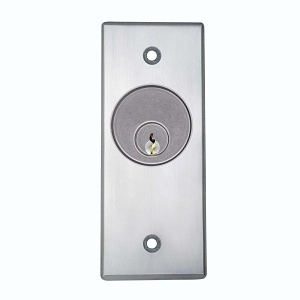

Camden CM-1190-7624 Flush Mount Key Switch, Single Gang, DPDT Maintained, Bi-Colored 24V LED, Brushed Aluminum
CM-1190-7624
|CM-11907624
Shop all Camden Door Controls
Camden CM-1190-7624 Flush Mount Key Switch, Single Gang, DPDT Maintained, Bi-Colored 24V LED, Brushed Aluminum
CM-1190-7624 | CM-11907624
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Camden Door Controls, CM-1100 and CM-2000 Series flush mount key switches meet the stringent demands of key switch controls. They are designed for use with standard 1", 1.12", or 1 .25" mortise cylinders. Fabricated from .25" thick aluminum, into a one piece die cast construction, with unique Camden Manufacturing features.
Main Features
- Indoor or outdoor flush applications
- Accepts standard mortise cylinders (1" - 1 1/4")
- Mullion style - only 1 3/4" Wide
- Heavy duty 1/4" thick aluminum plate
- 1 piece die cast construction
- Locators prevent cylinder from spinning
- 3 year warranty
General Information
Name: Camden CM-1190-7624 Flush Mount Key Switch, Single Gang, DPDT Maintained, Bi-Colored 24V LED, Brushed Aluminum
Category: Camden Door Controls, Access Control, Locking Devices, Key Switches
UPC Code: 670454172914
Country of Origin: Canada. Country of origin is subject to change.
Specifications
ADI Part Number CM-11907624 Brand Name Camden Door Controls Manufacturer Part Number CM-1190-7624 Product Series CM-1100
Maximum Operating Temperature 85°F Minimum Operating Temperature 32°F
Input Voltage 30V DC Power Source DC
Contact Type DPDT
Features 1 piece die cast construction, Accepts standard mortise cylinders (1" - 1-1/4"), Cylinder sits flush to faceplate, Heat shrink protective sleeve over contacts, Heavy duty 1/4" thick aluminum plate, Indoor or outdoor flush applications, Locators prevent cylinder from spinning, Mullion style - only 1-3/4" wide, No set screw required, Provision for 2 internal switches, Tamper proof screws and driver provided
