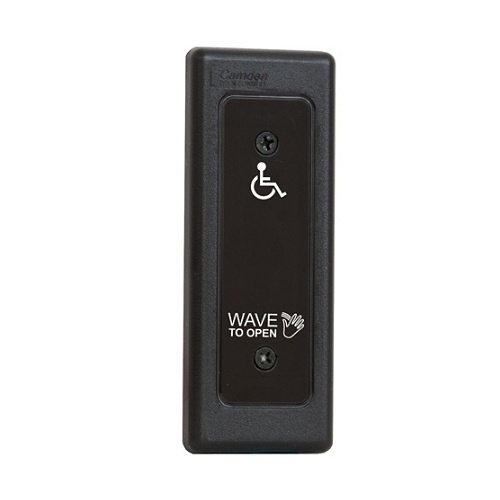

Camden CM-336/42N SureWave Battery Powered, 915Mhz. Wireless Touchless Switch, Narrow, Black Faceplate, Hand Icon, Wheelchair & Wave to Open Graphics

Brand: Camden Door Controls
ADI #:CM-33642N Model #: CM-336/42N  Name: Camden CM-336/42N SureWave Battery Powered, 915Mhz. Wireless Touchless Switch, Narrow, Black Faceplate, Hand Icon, Wheelchair & Wave to Open Graphics
  • Part of the Lazerpoint RF(tm) family of 915Mhz. Spread spectrum wireless devices, including fobs and keypads
  • Advanced power management enables 4 year battery life with std. alkaline batteries
  • Active Infro-red technology with near instant response.
Camden CM-336/42N Surewave(tm) Battery Powered, 915Mhz. Wireless Touchless Switch, Narrow, Black Faceplate, Hand Icon, Wheelchair & Wave to Open Graphics

Product Overview

CM-336 Series are 2nd generation hands-free wireless switches provide superior door activation in new and retrofit access control and automatic door applications. Supplied with (2) AA alkaline batteries. Camden CM-RX90 Wireless Receiver required. Lithium batteries recommended for environments below 0°C (32°F).

General Information

Name : Camden CM-336/42N SureWave Battery Powered, 915Mhz. Wireless Touchless Switch, Narrow, Black Faceplate, Hand Icon, Wheelchair & Wave to Open Graphics , Camden Door Controls
Category : Touchless Access Control
UPC Code : 670454215024
Country of Origin : Canada. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : CM-33642N
Brand Name : Camden
Manufacturer : Camden Door Controls
Manufacturer Part Number : CM-336/42N
Product Line : SureWave
Product Model : CM-336/42N
Product Name : SureWave CM-336/42N Touch-free Button
Product Series : CM-336
Product Type : Touch-free Button

Technical Information

Gang Type : Single Gang
Maximum Timer Duration : 30 Second
Maximum Timer Duration (Second) : 30
Minimum Timer Duration : 3 Second
Minimum Timer Duration (Second) : 3

Environmental Conditions

Maximum Operating Temperature : 153°F (67.2°C)
Maximum Operating Temperature (°F) : 153
Minimum Operating Temperature : -4°F (-20°C)
Minimum Operating Temperature (°F) : -4

Physical Characteristics

Application/Usage : Indoor/Outdoor
Product Color : Black

Power Description

Input Voltage : 12 V DC, 24 V DC, 30 V DC

Product Information

Print/Message : Handicap Logo, Wave To Open

Miscellaneous

Certifications & Standards : ADA
Country of Origin : Canada
Environmental Certification : RoHS
Environmentally Friendly : Yes
Features : Momentary On/Off Mode, Single Pole, Surface Mount
Package Contents : <ul> <li>SureWave CM-336/42N Touch-free Button</li> <li>Gasket</li> </ul>
