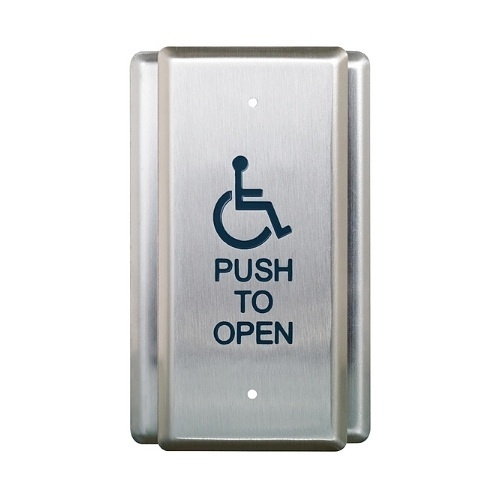

Camden CM-35-4 Single Gang Push Plate Switch, Vertical Mounting, 'WHEELCHAIR' Symbol and 'PUSH TO OPEN', Blue

Brand: Camden Door Controls
ADI #:CM-354 Model #: CM-35/4  Name: Camden CM-35-4 Single Gang Push Plate Switch, Vertical Mounting, 'WHEELCHAIR' Symbol and 'PUSH TO OPEN', Blue
  • CM-35: 4-1/2" x 2" (114mm x 50.8mm) faceplate, conforms to new OBC requirements and mounts on single gang box
  • Durable stainless steel construction
  • All-Active design requires minimal actuation force
Camden CM-35/4 Push Button

Product Overview

CM-25, CM-26CB, CM-35 and CM-35N Series all-active switches are heavy-duty, ADA-compliant door controls. CM-25 (1-5/8" x 4-1/2") and CM-26CB/CM-35 series (2" x 4-1/2") rectangular faceplates are stainless steel, aluminum or solid brass. The CM-25 is designed to mount directly on a metal door frame or narrow surface box. The CM-35 and CM-35N Series meets new OBC requirements for activation plate size and is designed for mounting on a single gang box.

Note: CM-35 Series push plate switches are not available with optional DPDT contacts or in optional architectural finishes. Also, CM-26CB are only available with /1, /2, /A2, /4 or /A4 white graphic options.

General Information

Name : Camden CM-35-4 Single Gang Push Plate Switch, Vertical Mounting, 'WHEELCHAIR' Symbol and 'PUSH TO OPEN', Blue , Camden Door Controls
Category : Door Pull & Push Plates
UPC Code : 670454124623
Country of Origin : Canada. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : CM-354
Brand Name : Camden
Manufacturer : Camden Door Controls
Manufacturer Part Number : CM-35/4
Product Model : CM-35/4
Product Name : CM-35/4 Push Button
Product Series : CM-35
Product Type : Push Button
Weight (Approximate) (g) : 163.293

Technical Information

Gang Type : Single Gang
Material : Stainless Steel

Environmental Conditions

Maximum Operating Temperature : 140°F (60°C)
Maximum Operating Temperature (°F) : 140
Minimum Operating Temperature : -40°F (-40°C)
Minimum Operating Temperature (°F) : -40

Physical Characteristics

Application/Usage : Alarm, Commercial, Door, Hospital, Indoor/Outdoor, Industrial, Residential, Traffic
Product Color : Blue
Weight (Approximate) : 5.76 oz

Power Description

Input Voltage : 12 V DC, 24 V DC, 30 V DC
Input Voltage (V DC) : 12, 24, 30

Product Information

Print/Message : Handicap Logo, Push To Open

Warranty

Limited Warranty : 3 Year

Miscellaneous

Certifications & Standards : <ul> <li>ADA Compliant</li> <li>UL/CSA Approved</li> </ul>
Features : Flush Mount, Heavy Duty, Surface Mount
