Product Overview

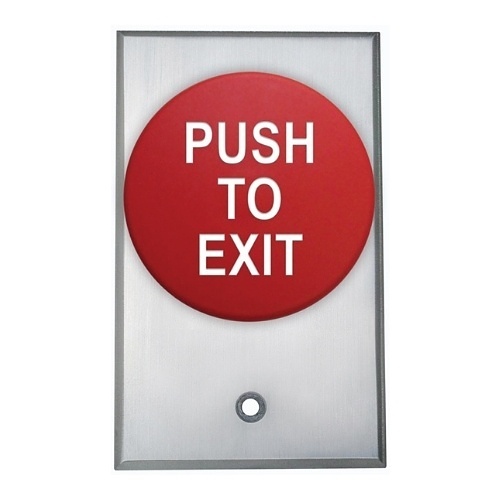

CM-5000 Series heavy duty mushroom push buttons are specially designed and manufactured to meet the stringent demands of high traffic exit control applications. Buttons are 2-3/8" (60mm) diameter and available in either green, red or blue. Switches feature 1/4" thick brushed aluminum single gang faceplates.
Note: Button engraved graphic options, as shown, are only available on Momentary Switches. Push/Pull and Push/Turn Switches cannot be engraved across the center of the button.
General Information
Name : Camden CM-5050-R Push/Pull 2 3/8" Pushbutton, Aluminum Faceplate, N/O & N/C, Maintained, Red Button , Camden Door Controls
Category : Request to Exit Devices
UPC Code : 670454127440
Country of Origin : Canada. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : CM-5050
Brand Name : Camden
Manufacturer : Camden Door Controls
Manufacturer Part Number : CM-5050R
Product Model : CM-5050R
Product Name : Push/Pull, N/O & N/C, Maintained, Red Only
Product Series : CM-5000
Product Type : Push/Pull Button
Weight (Approximate) (g) : 299.371
Technical Information
Button Size : 2.36"
Button Size (mm) : 60
Gang Type : Single Gang
Physical Characteristics
Application/Usage : Door, Indoor/Outdoor
Depth : 4"
Depth (mm) : 101.6
Height : 4.8"
Height (mm) : 120.65
Product Color : Red
Weight (Approximate) : 10.56 oz
Width : 3"
Width (mm) : 76.2
Power Description
Input Voltage : 12 V DC, 24 V DC
Input Voltage (V DC) : 12, 24
Product Information
Finishing : Brushed Aluminum
Warranty
Limited Warranty : 3 Year
Miscellaneous
Certifications & Standards : <ul> <li>ADA</li> <li>UL 294</li> </ul>
Features : Flush Mount, Heavy Duty, Momentary On/Off Mode, Surface Mount, Tamper Resistant, Vandal Resistant
