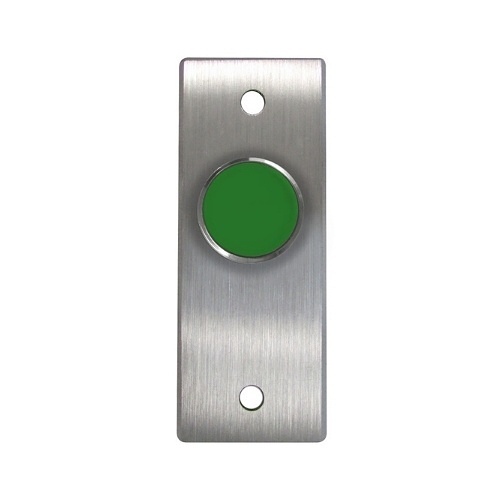

Camden CM-8100G Vandal Resistant Push Button (Extended), Single Gane Spring Return, N/O, Momentary, Green Button

Brand: Camden Door Controls
ADI #:CM-8100G Model #: CM-8100G  Name: Camden CM-8100G Vandal Resistant Push Button (Extended), Single Gane Spring Return, N/O, Momentary, Green Button
  • 1" diameter, extended, red or green buttons
  • Mounted on heavy 1/4" thick aluminum plate
  • Indoor or outdoor applications
Camden CM-8100G Vandal Resistant Push Button (Extended), Single Gane Spring Return, N/O, Momentary, Green Button

Product Overview

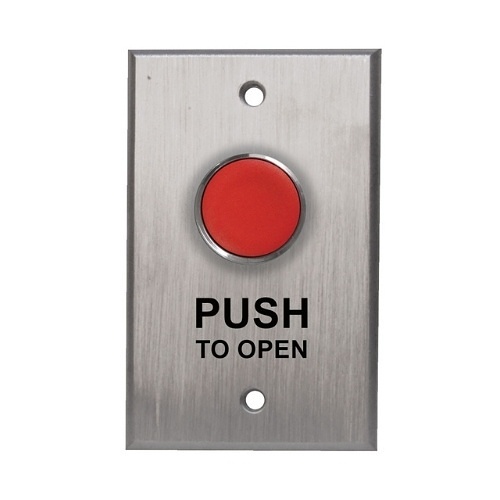

CM-8000 and CM-8100 Series push buttonsare vandal resistant;designed and manufactured to meet the stringent demands of exit controls. They are supplied with a 1/4" thick heavy duty brushed aluminum plate insingle gang and narrowwidths.

  • 1" diameter, extended, red or green buttons
  • Mounted on heavy 1/4" thick aluminum plate
  • Indoor or outdoor applications
  • Spring return operation
  • Pneumatic time delay models available
  • 3 year warranty with '2 for 1' replacement

General Information

Name : Camden CM-8100G Vandal Resistant Push Button (Extended), Single Gane Spring Return, N/O, Momentary, Green Button , Camden Door Controls
Category : Door Release Buttons
UPC Code : 670454129871
Country of Origin : Canada. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : CM-8100G
Brand Name : Camden
Manufacturer : Camden Door Controls
Manufacturer Part Number : CM-8100G
NDAA Compliant : No
Product Model : CM-8100G
Product Name : CM-8100G Push Button
Product Series : CM-8100
Product Type : Push Button

Technical Information

Gang Type : Single Gang

Physical Characteristics

Application/Usage : Indoor/Outdoor
Depth : 1.7"
Depth (mm) : 44
Height : 4.5"
Height (mm) : 114
Material : Brushed Aluminum
Product Color : Green
Width : 1.7"
Width (mm) : 44

Power Description

Input Voltage : 12 V DC, 24 V DC, 30 V DC

Warranty

Limited Warranty : 3 Year

Miscellaneous

Certifications & Standards : <ul> <li>ADA</li> <li>UL</li> </ul>
Country of Origin : Canada
Features : Momentary On/Off Mode, Single Pole, Vandal Resistant
Package Contents : <ul> <li>CM-8100G Push Button</li> <li>1 x 1/4" thick heavy duty brushed aluminum plate</li> </ul>
