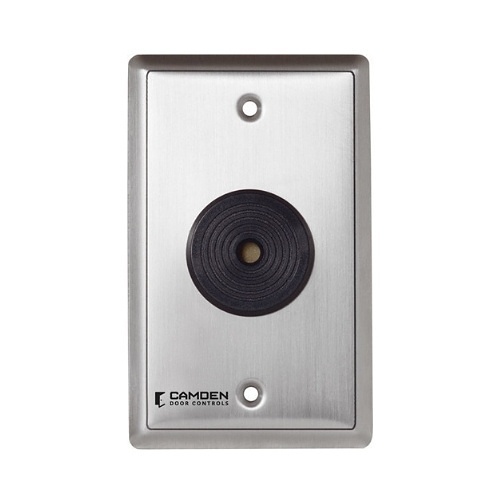

Camden CX-DA100 Door Alarm, Sounder, Single Gang, 3-24V DC

CX-DA100|CM-CXDA100
Shop all Camden Door Controls

Camden CX-DA100 Door Alarm, Sounder, Single Gang, 3-24V DC

CX-DA100|CM-CXDA100
Key Features
  • LOCAL AUDIBLE ALARM OF DOOR OPEN STATUS
  • HEAVY DUTY STAINLESS STEEL FACEPLATE
  • SINGLE AND DOUBLE GANG MODELS
Key Features
  • LOCAL AUDIBLE ALARM OF DOOR OPEN STATUS
  • HEAVY DUTY STAINLESS STEEL FACEPLATE
  • SINGLE AND DOUBLE GANG MODELS

Sign In for Dealer Pricing

Become an ADI Customer
Camden
Key Features
  • LOCAL AUDIBLE ALARM OF DOOR OPEN STATUS
  • HEAVY DUTY STAINLESS STEEL FACEPLATE
  • SINGLE AND DOUBLE GANG MODELS
Camden Door Controls

Camden CX-DA100 Door Alarm, Sounder, Single Gang, 3-24V DC

CX-DA100 | CM-CXDA100

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Camden CX-DA Series door alarms feature a rugged design with heavy duty stainless steel faceplates, and provide an affordable and easy to implement solution to the common issue of doors being used, propped or held open without alerting facility or security staff.

APPLICATION

CX-DA100 door alarms provide a 95 dB audible alarm, when energized by 12 - 24 VDC power. In door control applications, power is supplied to the CX-DA100 when a magnetic door contact closes the circuit.

CX-DA200 and CX-DA300 door alarms are 12/24V AC/DC powered and provide an 80 dB. audible alarm upon activation. There is an input for a N/C magnetic door contact and a N/C SPST contact output, for connection to a (remote) signal or annunciation device. A 0 - 30 second adjustable timer provides an alarm activation delay.

The CX-DA300 also provides an alarm bypass key switch, with LED indicator.

Main Features

  • LOCAL AUDIBLE ALARM OF DOOR OPEN STATUS
  • HEAVY DUTY STAINLESS STEEL FACEPLATE
  • SINGLE AND DOUBLE GANG MODELS
  • CX-DA100 SINGLE GANG SOUNDER IDEAL FOR WIDE RANGE OF ALARM APPLICATIONS
  • CX-DA200 AND CX-DA300 FEATURE ADJUSTABLE 0 - 60 SECOND ALARM TIME DELAY AND RELAY OUTPUT
  • CX-DA300 DOUBLE GANG DOOR ALARM FEATURES KEY SWITCH FOR LOCAL RESET OR BYPASS

General Information

Name: Camden CX-DA100 Door Alarm, Sounder, Single Gang, 3-24V DC
Category: Camden Door Controls, Access Control, Egress Devices, Door Alarms
UPC Code: 670454172273
Country of Origin: Canada. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
