Draper 152101 165" Acumen XL Electric Below-the-Ceiling Projection Screen, HDTV, Matte White
152101
|DF-152101
Draper 152101 165" Acumen XL Electric Below-the-Ceiling Projection Screen, HDTV, Matte White
152101 | DF-152101
Please sign in to view pricing, availability, and to add to cart.
Product Overview

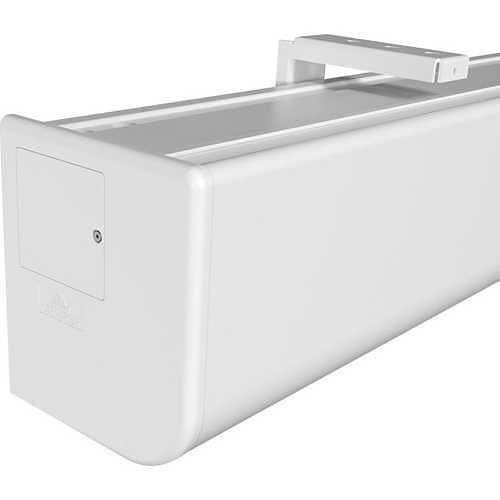

Acumen® XL E presents an attractive below-the-ceiling projection screen engineered for flexibility in installation and quality support for larger sizes, yet still looks elegant in today's interiors. Smooth, curved aluminum housing and white powder coated finish complement any room design. Floating mounting brackets provide this free-hanging, wall- or ceiling-mounted electric screen quick and easy installation. The sleek radiused fascia is easily removable if maintenance is required. A wide variety of motor and control options including quiet and low voltage are available.
Main Features
- Case dimensions: 9-1/4" h x 8-1/8" d 1(235 mm x 206 mm). Extruded aluminum housing withWhite powder coated or optional black finish.
- Maximum imageWidth up to 18' (5.5 m)Wide.
- Available with OptiView line of viewing surfaces.
- HDTV and 16:10 formats have image area framed with black on all four sides. Black side borders are available upon request for special sizes.
- Black drop standard, depending on screen size. Extra drop above image area available upon request.
- Ships with built-in low-voltage controller and wall switch (standard). Other control options are available.
- Floating mounting brackets included.
- Seven-year warranty. *USA and Canada only.
General Information
Specifications
ADI Part Number DF-152101 Brand Name Draper Manufacturer Draper, Inc Manufacturer Part Number 152101 Packaged Quantity 1 Product Line Acumen XL E Product Name Acumen XL E, 165" , 16:10, Matt White XT1000E, 110 V Product Type Projection Screen
Diagonal Image Size 165" Screen Folding Mechanism Electric
Aspect Ratio 16:10
Color Black, White Height 20" Weight 144lb Width 14"
Mount Type Ceiling Mount
Limited Warranty 7-Year
Country of Origin US Package Contents - Acumen XL E, 165" , 16:10, Matt White XT1000E, 110 V
- Floating mounting brackets
- Built-in low-voltage controller
- Wall switch (standard)
