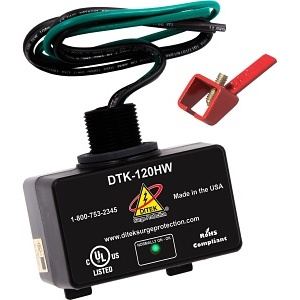

DITEK DTK-120HWLOK 120VAC Surge Protective Device with Lockout Kit
DTK-120HWLOK|DK-120HWLOK
DITEK DTK-120HWLOK 120VAC Surge Protective Device with Lockout Kit
DTK-120HWLOK|DK-120HWLOK
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
DITEK’s DTK-120HWLOK surge protective device is designed and manufactured to meet the standards of the life safety industry. This compact, parallel-mount SPD is widely used to protect fire alarm panels and other dedicated branch circuit loads. Its small footprint enables installation in a variety of locations. The DTK-120HWLOK includes an NFPA 72 2013 10.6.5.2 compatible lockout kit to prevent accidental disconnect of the fire alarm system.
Main Features
- Approved for 20A circuit breakers
- Diagnostic LED indicates ground presence, system power and SPD function
- Weatherproof enclosure
- Small footprint enables installation in a variety of locations
- Complies with ANSI/IEEE C62.41 and C62.45 Category B standards
- Lockout kit prevents accidental disconnect of fire alarm system
General Information
Name: DITEK DTK-120HWLOK 120VAC Surge Protective Device with Lockout Kit
Category: DITEK, Fire, Batteries & Power Supplies, Fire Relays & Power, Power Strips & Surge Protectors, Surge Protection Modules, Surge Protection Modules
UPC Code: 782980519603
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number DK-120HWLOK Brand Name DITEK Manufacturer DITEK Corporation Manufacturer Part Number DTK-120HWLOK NDAA Compliant Yes Product Model DTK-120HWLOK Product Name DTK-120HWLOK Equipment Panel/Dedicated Circuit Surge Protective Device Product Series HW Product Type Surge Suppressor/Protector Weight (Approximate) (g) 226.796 Â
-
Dataline Protection Datacommunication Output Voltage 120V AC Output Voltage (V AC) 120 Â
-
Output Voltage (V DC) 12, 24 Â
-
Output Voltage (V) 120 Â
-
Height 2.9" Height (mm) 74.422 Weight (Approximate) 8 oz Width 1.7" Width (mm) 42.672 Â
-
Input Voltage 120V AC Input Voltage (V AC) 120 Â
-
Limited Warranty 10 Years Â
-
Environmental Certification RoHS Environmentally Friendly Yes TAA Compliant Yes Â
