Product Overview
DITEK's D100 industrial AC power surge protection devices are recommended for electrical panels rated at 200A to 600A. The D100-120/240HL protects 120/240VAC high leg delta panels.
- 100,000 Amp surge current rating per phase, 50,000 Amps per mode, ensures long service life
- Compact size enables close mounting to protected panel, minimizing wire length and maximizing performance
- Diagnostic LED indicates system power and SPD function
Main Features
- 100,000 Amp surge current rating ensures long service life
- Compact size enables close mounting to the protected panel, to minimize wire length and maximize performance
- Diagnostic LED indicates system power and SPD function
- Available in 7 voltage configurations
General Information

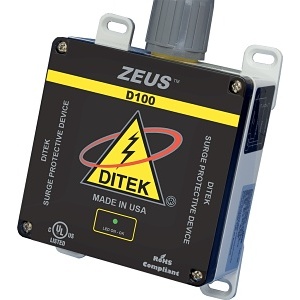

Name: DITEK D100-120/240HL Surge Protection Module
Category: DITEK, Access Control, Fire, Batteries & Power Supplies, Power Products, Fire Relays & Power, Power Strips & Surge Protectors, Surge Protection Modules, Surge Protection Modules, Surge Protection Modules
UPC Code: 782980511201
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number DK-D1001224H Brand Name DITEK Manufacturer DITEK Corporation Manufacturer Part Number D100-120/240HL Product Line ZEUS Product Model D100-120/240HL Product Name ZEUS D100-120/240HL Surge Suppressor/Protector Product Series D100 Product Type Surge Suppressor/Protector Weight (Approximate) (g) 900 Â
-
Operating Temperature (T-T) -32°F – 104°F Â
-
Height 4.7" Height (mm) 119 Weight (Approximate) 1.98 lb Width 2.4" Width (mm) 61 Â
-
Input Voltage 120V AC, 230V AC Input Voltage (V AC) 120, 230 Â
-
Operating Temperature (T-T) (°F) -32°F – 104°F Â
-
Limited Warranty 10 Year Â
-
Environmental Certification RoHS Environmentally Friendly Yes TAA Compliant Yes Â
