DITEK DTK-TSS2 Total Surge Solution for Fire Alarm Systems, includes DTK-120SRD for AC Power Surge Protection 2-position Hardwired base
DTK-TSS2
|DK-TSS2
Shop All DITEK
DITEK DTK-TSS2 Total Surge Solution for Fire Alarm Systems, includes DTK-120SRD for AC Power Surge Protection 2-position Hardwired base
DTK-TSS2 | DK-TSS2
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

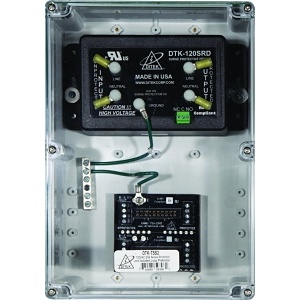

The DTK-TSS2 includes a DTK-120SRD for AC power surge protection with remote monitoring, and a 2-position hardwired base to add loop circuit protection.
- Protects 120VAC power with dry contacts for remote monitoring of surge protection status
- Hard-wired base for 2MHLP/2MHLPB modules to protect up to 4 SLC, NAC, IDC and PIV circuit pairs (2MHLP modules sold separately)
- Installed in a NEMA 4X enclosure
Specifications
ADI Part Number DK-TSS2 Brand Name DITEK Manufacturer DITEK Corporation Manufacturer Part Number DTK-TSS2 Product Model DTK-TSS2 Product Name DTK-TSS2 Surge Suppressor Product Series TSS Product Type Surge Suppressor/Protector
Connectivity Technology Wired Dataline Protection Datacommunication, Telecommunication Output Voltage 120V AC, 130V AC
NDAA Compliant Yes TAA Compliant Yes
Receptacles Terminal Block
Depth 4" Height 10" Weight 5lb Width 7"
Input Voltage 120V AC, 130V DC
Limited Warranty 10-Year
Compatibility - Alarm System
- Control Panels
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes
