DITEK DTK-TSS3 Surge Suppressor
Shop all DITEK

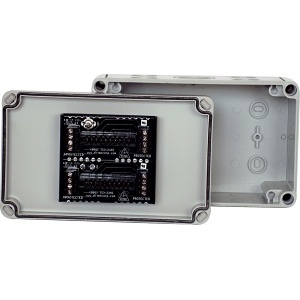

DITEK DTK-TSS3 Outdoor Rated Fire Alarm Protection for Signaling and Notification

DTK-TSS3|DK-TSS3
Shop all DITEK

DITEK DTK-TSS3 Outdoor Rated Fire Alarm Protection for Signaling and Notification

DTK-TSS3|DK-TSS3
Key Features
  • Hard-wired base for 2MHLP/2MHLPB modules to protect up to 4 SLC, NAC, IDC and PIV circuit pairs (2MHLP modules sold separately)
  • Perfect solution for building-to-building notifier and communication runs
  • Installed in a NEMA 4X enclosure
Key Features
  • Hard-wired base for 2MHLP/2MHLPB modules to protect up to 4 SLC, NAC, IDC and PIV circuit pairs (2MHLP modules sold separately)
  • Perfect solution for building-to-building notifier and communication runs
  • Installed in a NEMA 4X enclosure

Sign In for Dealer Pricing

Become an ADI Customer
Legrand
Key Features
  • Hard-wired base for 2MHLP/2MHLPB modules to protect up to 4 SLC, NAC, IDC and PIV circuit pairs (2MHLP modules sold separately)
  • Perfect solution for building-to-building notifier and communication runs
  • Installed in a NEMA 4X enclosure
DITEK

DITEK DTK-TSS3 Outdoor Rated Fire Alarm Protection for Signaling and Notification

DTK-TSS3 | DK-TSS3

Please sign in to view pricing and availability and to add to cart.

Accessories

Grounding & Bonding
DITEK 100-640 Grounding Bar
ADI # DK-100640
MODEL # 100-640
DITEK
DITEK 100-640 Ground Bar, 5-Position Grounding Buss
100-640|DK-100640
Sign In for Dealer Pricing
Overview
Specifications
Documents

Product Overview

DITEK's Total Surge Solution (TTS) si a range of products that provide total surge protection for addressable and conventional alarm systems.

The TSS3 is a perfect fit for building to building notifier and communications runs. It comes with a prewired four-pair mounting base for loops protector modules. Selection 5V - 75V DTK-2MHLP modules, or 2MHTP telco modules, provides a custom solution for your system. The TSS3 protects four pairs of SLC, IDC, or NAC circuits. All protection modules are field-replaceable.

Main Features

  • Hard-wired base for 2MHLP/2MHLPB modules to protect up to 4 SLC, NAC, IDC and PIV circuit pairs (2MHLP modules sold separately)
  • Perfect solution for building-to-building notifier and communication runs
  • Installed in a NEMA 4X enclosure

General Information

Name: DITEK DTK-TSS3 Outdoor Rated Fire Alarm Protection for Signaling and Notification
Category: DITEK, Batteries & Power Supplies, Power Strips & Surge Protectors, Surge Protection Modules
UPC Code: 782980503992
Country of Origin: United States. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
Installation Instructions
