Bosch FMM-100SATK-NYC Manual Station, Single-Action for NYC
FMM-100SATK-NYC
|DS-FMM100NYC
Shop all Bosch
Bosch FMM-100SATK-NYC Manual Station, Single-Action for NYC
FMM-100SATK-NYC | DS-FMM100NYC
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

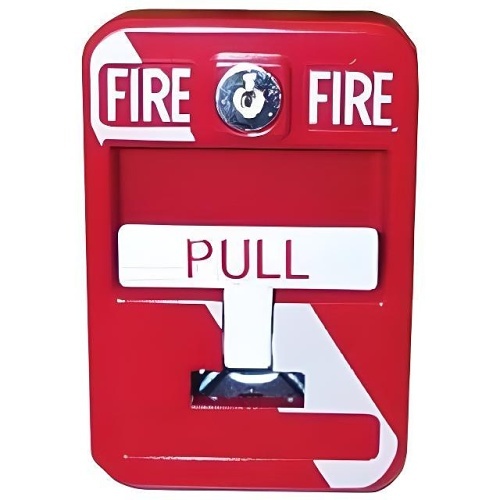

The FMM-100 family are versatile, high-quality, metal fire alarm manual stations. Single-action or dual-action models are available. All models come with a key lock and contain gold-plated contacts to resist corrosion.
Functions
Operation
Single-action
When the bar on the front of the manual station is pulled, it latches open and is easily visible from 50 ft (15 m). Reset the activation bar by opening the manual station with the key and placing the activation bar in its normal upright position. An optional scored acrylic break rod is available.
Main Features
- Single action for New York City
- Gold‑plated alarm contacts for corrosion resistance
- Surface or weatherproof back boxes
- Terminal connections
General Information
Name: Bosch FMM-100SATK-NYC Manual Station, Single-Action for NYC
Category: Bosch, Fire, Fire Pull Stations, Single Action Pull Stations, ADI Pro Rewards
UPC Code: 782695119716
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number DS-FMM100NYC Brand Name Bosch Manufacturer The Bosch Group Manufacturer Part Number FMM-100SATK-NYC Packaged Quantity 1 Product Model FMM-100SATK-NYC Product Name FMM-100SATK-NYC Manual Station, Single-Action for NYC Product Series FMM-100 Product Type Pull Station
Application/Usage Fire Alarm, Outdoor Gang Type Single Gang Material Die-cast Metal Pull Station Type Single Action
Maximum Operating Temperature 150°F Minimum Operating Temperature -40°F
Color Red Depth 1" Durability Corrosion Resistant, Weatherproof Width 3"
Input Voltage 120V AC
Print/Message Pull
Country of Origin CN Features Flush Mount, Key Lock, Surface Mount, Wall Mountable Package Contents - FMM-100SATK-NYC Manual Station, Single-Action for NYC
- 1 x Key (1358 key)
- 1 x Acrylic Break Rod
- 1 x Hardware pack
- 1 x Literature pack
