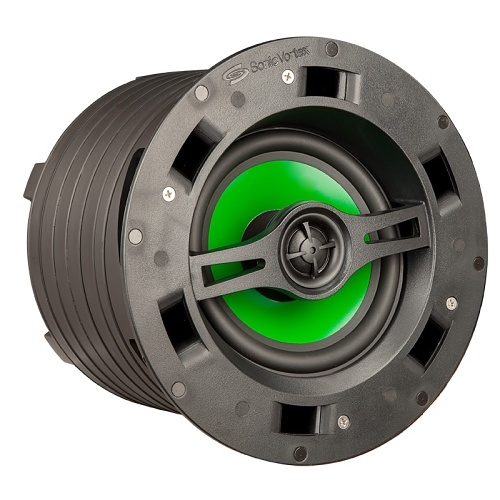

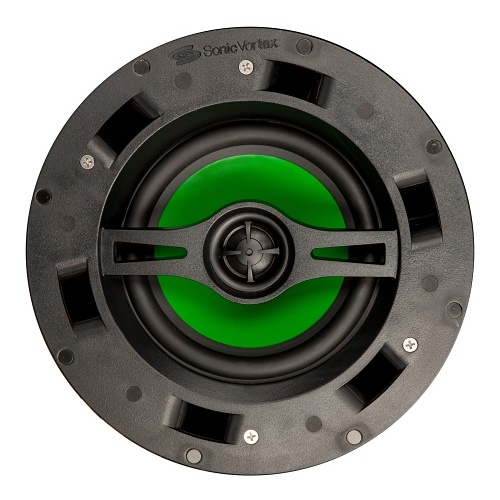

Beale ICA6-B 6.5" 2-Way In-Ceiling Angled Speaker

Brand: Beale Street Audio
ADI #:DX-ICA6B Model #: ICA6-B  Name: Beale ICA6-B 6.5" 2-Way In-Ceiling Angled Speaker
  • The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience
  • Handles up to 5 W of RMS power
  • Hear low subs and soaring vocals with a frequency range of sound from 46 Hz-22 kHz
Beale ICA6-B 2-way In-ceiling, In-wall Speaker - 5 W RMS

Product Overview

LCR angled in ceiling 6.5" 2-way speaker powered by Sonic Vortex®

Our Sonic Vortex® technology generates rich, deep bass and effortless clarity from what most people would call a 'back box', but is not. It is actually a compact, integrated tuned enclosure.
This patented technology is a 'twist' on Ported Transmission Line design, that optimizes air movement to produce astonishing sound. The enclosure also keeps sound from bleeding to other rooms while adding 6 to 9dB boost in mid-lower bass.

General Information

Name : Beale ICA6-B 6.5" 2-Way In-Ceiling Angled Speaker , Beale Street Audio
Category : Speakers
UPC Code : 741835107754
Country of Origin : China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : DX-ICA6B
Brand Name : Beale
Manufacturer : Beale Street Audio
Manufacturer Part Number : ICA6-B
Product Model : ICA6-B
Product Name : ICA6-B Speaker
Product Type : Speaker

Technical Information

Crossover Type : 2-way
Impedance : 8 Ohm
Impedance (Ohm) : 8
Maximum Frequency Response (Hz) : 22000
Minimum Frequency Response (Hz) : 46
PMPO Output Power (W) : 120
Sensitivity : 91 dB
Sensitivity (dB) : 91
Speaker Size : 6.50"
Speaker Size (mm) : 165.1
Tweeter Driver Material : Silk Dome
Tweeter Driver Size : 1"
Tweeter Driver Size (mm) : 25.4
Woofer Driver Material : Polypropylene
Woofer Driver Size : 6.50"
Woofer Driver Size (mm) : 165.1

Audio

Maximum Frequency Response : 22 kHz
Minimum Frequency Response : 46 Hz
PMPO Output Power : 120 W
RMS Output Power : 5 W
RMS Output Power (W) : 5

Physical Characteristics

Application/Usage : Commercial, Fire Alarm, Music, Public Building, Signaling System, Voice
Color : Black
Cutout Diameter : 8.40"
Cutout Diameter (mm) : 213.36
Depth : 6.80"
Depth (mm) : 172.72
Diameter (mm) : 238.76
Form Factor : In-ceiling, In-wall
Height : 8.4"
Speaker Installation : Outdoor
Woofer Diameter : 6.50"
Woofer Diameter (mm) : 165.1

Product Information

Diameter : 9.4"

Warranty

Limited Warranty : Lifetime
