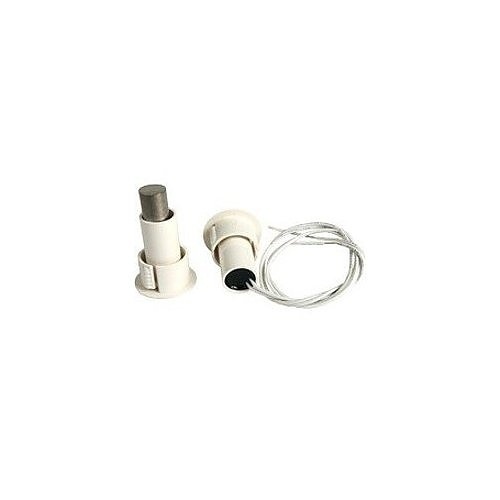

Edwards Signaling 1076C-N Recessed Steel Door Magnetic Contact with Wire Leads, 3/8" Gap Size, SPDT, 3/4" Diameter, Single Pole-Double Throw, White
1076C-N
|ED-1076CN
Edwards Signaling 1076C-N Recessed Steel Door Magnetic Contact with Wire Leads, 3/8" Gap Size, SPDT, 3/4" Diameter, Single Pole-Double Throw, White
1076C-N | ED-1076CN
Please sign in to view pricing, availability, and to add to cart.
Product Overview
The Interlogix 1078 Series Steel Door contacts are designed specifically for use in the steel doors commonly found in commercial building applications. The unique housing design features a rugged unibody construction with flexible ribbed sides for quick, secure installation without gluing. The magnet housing isolates the magnet from the surrounding steel for maximum gap distances, both make and break. Over seven models including: Wide Gap, SPDT, DPDT, and Biased for High Security applications make the 1078 Series the most widely used and comprehensive line available.
Specifications
ADI Part Number ED-1076CN Brand Name Edwards Signaling Manufacturer Carrier Manufacturer Part Number 1076C-N Product Model 1076C-N Product Name 1078C Series 3/4" Diameter Steel Door Switch With Wire Leads Product Series 1078C Product Type Magnetic Contact
Application/Usage Commercial Connectivity Technology Wired Material ABS Power Consumption 3W Standard Gap 0.38" Termination Style Wire Leads
Height 1.1" Width 0.8"
Input Current 250mA Input Voltage 30V AC, 30V DC Power Source AC
Contact Type Closed Loop, Open Loop, SPDT Diameter 0.75" Installation Type Commercial Length 12"
Additional Information - 3/4" diameter for easier drilling in metal
- Self-lock mounting
- Rugged construction
- Attractive, added security of recessed installation
Country of Origin CN
