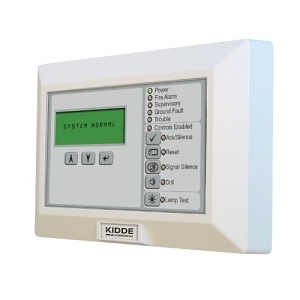

Kidde Commercial K-RLCD-C-2 Remote Annunciator compatible with EVOLVE-ML series LCD with Common Controls, White
K-RLCD-C-2
|ED-KRLCDC2
Shop All Kidde Commercial
Kidde Commercial K-RLCD-C-2 Remote Annunciator compatible with EVOLVE-ML series LCD with Common Controls, White
K-RLCD-C-2 | ED-KRLCDC2
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Kidde Commercial R-Series Annunciators are high-performance
remote annunciators that provide status indication and common controls for compatible fire alarm control panels, including
EVOLVE-ML. This family of annunciators offers LCD or
LED annunciation. Models are available with and without
common controls.
There are three R-Series annunciator models, plus an LED-based
expander. Up to two expanders can be connected to any
annunciator. The expander includes 24 pairs of LEDs that extend
the capabilities of any of the annunciators.
All annunciator models include status LEDs and an internal buzzer. Two models have an LCD text display, and one has 16 pairs of
LEDs for zone annunciation. LCD models feature a large back-lit,
four by twenty character per line, super-twist liquid
crystal display.
R-Series annunciators and expanders are mounted on a standard
4-inch square electrical box, using the included mounting ring.
They can also be surface mounted in locking steel enclosures.
Three different enclosures are available.
A keyswitch interface is available for R-Series annunciator
applications. The keyswitch enables or disables common
controls.
remote annunciators that provide status indication and common controls for compatible fire alarm control panels, including
EVOLVE-ML. This family of annunciators offers LCD or
LED annunciation. Models are available with and without
common controls.
There are three R-Series annunciator models, plus an LED-based
expander. Up to two expanders can be connected to any
annunciator. The expander includes 24 pairs of LEDs that extend
the capabilities of any of the annunciators.
All annunciator models include status LEDs and an internal buzzer. Two models have an LCD text display, and one has 16 pairs of
LEDs for zone annunciation. LCD models feature a large back-lit,
four by twenty character per line, super-twist liquid
crystal display.
R-Series annunciators and expanders are mounted on a standard
4-inch square electrical box, using the included mounting ring.
They can also be surface mounted in locking steel enclosures.
Three different enclosures are available.
A keyswitch interface is available for R-Series annunciator
applications. The keyswitch enables or disables common
controls.
Main Features
- LCD models feature large 4 x 20 character backlit LCD display
- LED models provide 16 pairs of LEDs for zone annunciation
- Available expander extends capability with 24 pairs of LEDs
- Up to two expanders may be wired to each annunciator
- Status LEDs and internal buzzer standard on all models
- Common controls available for LED and LCD display models
- Available keyswitch for disabling common controls
- Standard 4-inch square electrical box mounting
- Class B or Class A RS485 wiring standard
- One-, two-, and three-position enclosures available
General Information
Name: Kidde Commercial K-RLCD-C-2 Remote Annunciator compatible with EVOLVE-ML series LCD with Common Controls, White
Category: Kidde Commercial, Fire, Fire Control Panels, Annunciators
UPC Code:
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number ED-KRLCDC2 Brand Name Kidde Commercial Manufacturer Part Number K-RLCD-C-2 Product Series R Product Type Remote Annunciator
ADI Part Number Replaces ED-KRLCDC Model Number Replaces K-RLCD-C
