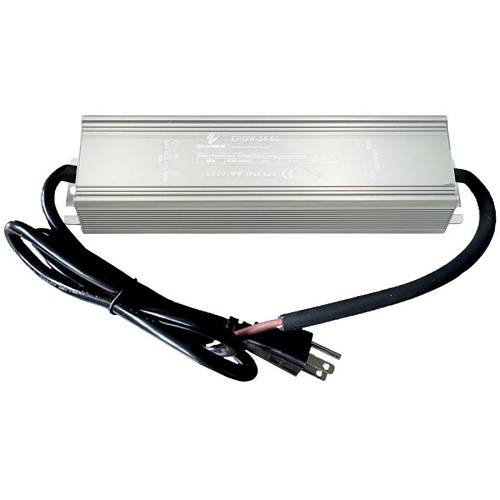

EtherWAN EPOW-24-60 Hardened NEMA TS2 Power Supply, 24V, 60W
EPOW-24-60
|ET-EPOW2460
Shop all EtherWAN
EtherWAN EPOW-24-60 Hardened NEMA TS2 Power Supply, 24V, 60W
EPOW-24-60 | ET-EPOW2460
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
With a wide operating temperature range of -40 to 75°C (-40 to 167°F) and built with an aluminum fanless design, EtherWAN’s EPOW-24-60 is a 24V 60W hardened power supply designed to operate in the most extreme environments. The EPOW-24-60 has a 60W power budget and built in over-voltage and short-current protection, making it a perfect and reliable solution for PoE applications.
Main Features
- Active built-in PFC for max power distribution efficiency
- Constant voltage across output terminal
- Wide operating temperature range -40 to 75°C (-40 to 167°F)
- Fanless operation
- IP67 total dust protection and water resistance
- Complies with NEMA TS1 and TS2 electrical and temperature requirements for traffic control equipment
- High impact, thermal shock, and electrical noise resistance
General Information
Name: EtherWAN EPOW-24-60 Hardened NEMA TS2 Power Supply, 24V, 60W
Category: EtherWAN, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number ET-EPOW2460 Brand Name EtherWAN Manufacturer Part Number EPOW-24-60
Output Voltage 24V DC
ADI Part Number Replaces ET-411360441, ET-411450461, ET-E41145441, ET-HDR3024 Model Number Replaces 41-136044-1, EX41-145044-1, EX41-145046-1, HDR-30-24
Depth 1.74" Height 1.26" Width 7.09"
Input Voltage 100-277V AC Output Current 11.1A
Mount Type Wall Mount
Limited Warranty 3-Year
