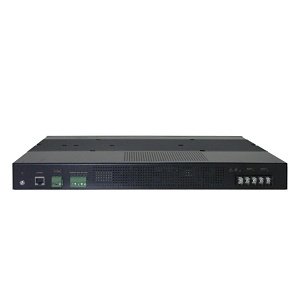

EtherWAN EX75960-0VTU Hardened Managed 28-Port Gigabit PoE Ethernet Switch, 24-Port 10/100/1000BASE-T(X) PoE + 4-Port 1000BASE SFP
EX75960-0VTU
|ET-EX7590VTU
Shop All EtherWAN
EtherWAN EX75960-0VTU Hardened Managed 28-Port Gigabit PoE Ethernet Switch, 24-Port 10/100/1000BASE-T(X) PoE + 4-Port 1000BASE SFP
EX75960-0VTU | ET-EX7590VTU
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
EtherWAN's EX75900 series is a hardened managed PoE Ethernet switch platform. Equipped with 24 gigabit PoE ports along with 720W total PoE power budget, IEEE 802.3.bt protocol support and 4 10-gigabit SFP+ ports, the EX75900 series provides flexibility, speed, and reliability for networks in urban infrastructure, transportation, security, and other areas where connectivity is crucial.
Main Features
- Up to 24 ports 60W PoE, total 720W PoE power budget
- Dual-rate SFP slots (1G/10G)
- Supports static routes, RIP v1/v2, and VRRP
- Limited Lifetime Warranty
- IEEE 802.3bt with 60W 720W Power budget PoE watchdog monitors status of connected PoE devices
- Free Firmware Upgrades and notifications
General Information
Name: EtherWAN EX75960-0VTU Hardened Managed 28-Port Gigabit PoE Ethernet Switch, 24-Port 10/100/1000BASE-T(X) PoE + 4-Port 1000BASE SFP
Category: EtherWAN, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number ET-EX7590VTU Manufacturer Part Number EX75960-0VTU Product Series EX75900
Power Consumption 26.0000W
Manageable Yes
Networking Standards IEEE 802.1AB, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Depth 10.60" Height 1.74" Material Metal Width 17.40"
Input Voltage 46-57V DC, 52-57V DC PoE Budget 720.0W Power Source PoE (Power over Ethernet)
Mount Type Rack Mount
Limited Warranty Lifetime Warranty
Environmental Certification FCC, UL Environmentally Friendly Yes Features Dual-rate SFP slots (1G/10G), Supports static routes, RIP v1/v2, and VRRP, Up to 24 ports 60W PoE, total 720W PoE power budget Package Contents 1 Console Cable, Ethernet Switch, Mounting brackets, screws, Quick Install Guide
