Product Overview

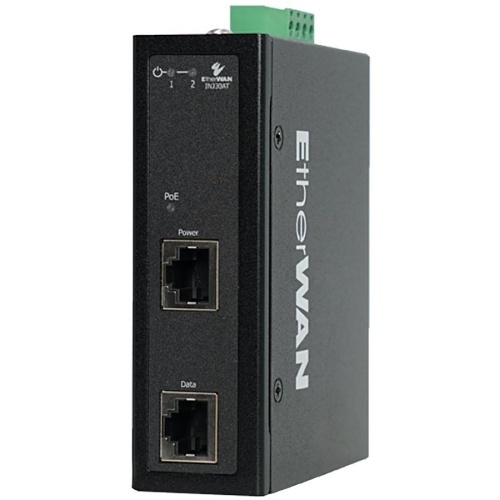

EtherWAN’s INJ30AT is a compact hardened DIN-rail mounted PoE injector. Providing up to 30W power output, the INJ30AT provides the solution required to integrate remote PoE devices such as IP cameras and other network devices into non-PoE networks for reliable operation even in harsh environments.
Main Features
- Provides PoE functionality to a Non-PoE Network
- Backwards Compatible with 802.3af Devices
- Up to 30W output
General Information
Name: EtherWAN INJ30AT Hardened Gigabit PoE Injector, 30W
Category: EtherWAN, Data Comm & Networking, PoE Devices
UPC Code: 847653005767
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
ADI Part Number ET-INJ30AT Brand Name EtherWAN Manufacturer Part Number INJ30AT Product Type PoE Injector
Operating Temperature (T-T) -40-167°F
Networking Standards IEEE 802.3 10BASE-T, IEEE 802.3ab 1000BASE-T, IEEE 802.3af PoE, IEEE 802.3at PoE+, IEEE 802.3u 100BASE-TX/100BASE-FX
Depth 3.21" Height 4.07" Width 1.26"
Input Voltage 24-56V DC
Mount Type DIN Rail/Wall Mountable
Limited Warranty Lifetime
Certifications & Standards EN 55024, EN 55032, EN 61000-4-2 (ESD), EN 61000-4-4 (Burst), EN 61000-4-5 (Surge)EN 60068-2-32, FCC Part 15B Class A, IEC 60068-2-27, IEC 60068-2-6, ISO-9001 Compatibility 802.3af Devices Environmental Certification UL Environmentally Friendly Yes Package Contents Injector, Mounting brackets, screws, 4-pin terminal block, Quick Install Guide
