Image of FL-B200SRLFW
Shop all Fire-Lite Alarms by Honeywell

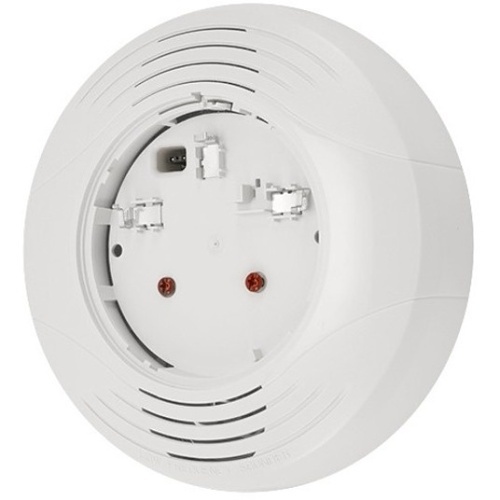

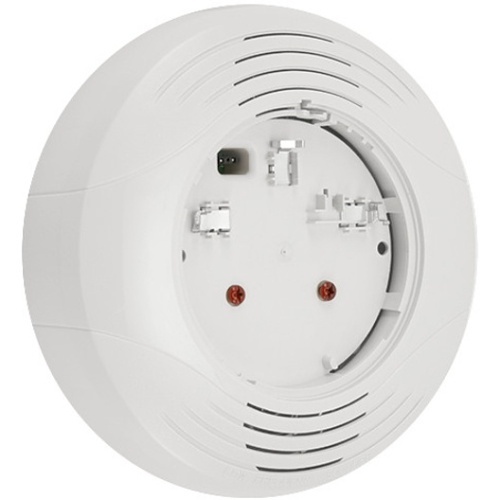

Fire-Lite B200SR-LF-WH Low Frequency Intelligent Sounder Base, White

B200SR-LF-WH|FL-B200SRLFW
Shop all Fire-Lite Alarms by Honeywell

Fire-Lite B200SR-LF-WH Low Frequency Intelligent Sounder Base, White

B200SR-LF-WH|FL-B200SRLFW
Key Features
  • Base Diameter: 6.875" (17.46 cm)
  • Base Height (less sensor): 2.0" (5.08 cm)
  • Standby Current: 1 mA maximumV DC
Key Features
  • Base Diameter: 6.875" (17.46 cm)
  • Base Height (less sensor): 2.0" (5.08 cm)
  • Standby Current: 1 mA maximumV DC

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Base Diameter: 6.875" (17.46 cm)
  • Base Height (less sensor): 2.0" (5.08 cm)
  • Standby Current: 1 mA maximumV DC
Fire-Lite Alarms by Honeywell

Fire-Lite B200SR-LF-WH Low Frequency Intelligent Sounder Base, White

B200SR-LF-WH | FL-B200SRLFW

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The B200SR-LF-WH and B200SR-LF-IV sounder bases are used with addressable detector heads. Refer to the appropriate manual for more information on sensors. The B200SR-LF-WH/B200SR-LF-IV low frequency sounder base generates a low frequency tone around 520 Hz. Studies have shown that low frequency audible devices that operate around 520 Hz are more effective in waking individuals in sleeping areas. It offers maximum flexibility in configuration and operation to meet or exceed the requirements of UL268 and UL464. The sounder base is capable of producing either the distinctive three-pulse temporal pattern (ANSI Temporal 3) fire alarm signal now required by NFPA 72 for commercial and residential applications or a continuous tone by simply removing the included jumper from the device. Additionally, the B200SR-LF-WH/B200SR-LF-IV is designed to be compatible with existing installations of B501-Series sounder bases. The sounder base is intended for use with intelligent systems. The sounder base requires an external 24 VDC power supply. The connections for the external power supply and the communication loop are isolated to prevent electrical interaction between them. Refer to the panel manual for maximum allowable number of units per loop.

Main Features

  • Base Diameter: 6.875" (17.46 cm)
  • Base Height (less sensor): 2.0" (5.08 cm)
  • Standby Current: 1 mA maximumV DC
  • SLC Operating Voltage: 15 to 32 VDC
  • Sound Output: Greater than 85 dBA minimum measured in a UL reverberant room at 10 feet, 24 Volts (in continuous tone)
  • The detector used with this base must be tested and maintained regularly following NFPA 72 requirements.
  • The detector should be cleaned at least once a year.

General Information

Name: Fire-Lite B200SR-LF-WH Low Frequency Intelligent Sounder Base, White
Category: Fire-Lite Alarms by Honeywell, Fire, Fire Detection Devices, Detector Bases
UPC Code: 783863053016
Country of Origin: Mexico. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
Installation Instructions
