Product Overview

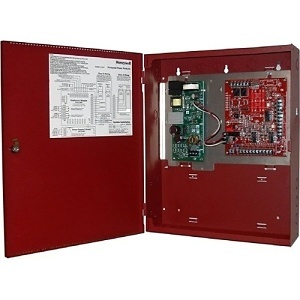

The Honeywell HPFF8(E) and HPFF8CM(E) are Notification Appliance Circuit (NAC) Expander Power Supplies designed to extend the power capabilities of existing NACs and provide power for auxiliary devices. The HPFF8 and HPFF8CM connect to any 12 or 24V Fire Alarm Control Panel (FACP) or operate stand-alone. They provide regulated and filtered 24VDC power to four NAC's and an auxiliary output. The NAC outputs are rated at 3.0A each and the auxiliary output is rated at 2.0A (this output is continuously supplied, even in alarm, and therefore must be taken into account for power supply loading and battery size calculations). The combined output cannot exceed 8.0A.
Main Features
- Four (4) power limited supervised notification application circuits (NAC's) capable of supplying +24VDC at 3.0A maximum each.
- Separate Trouble and AC Fail Form-C relay contacts
- The Trouble Form-C relay contacts selectable for immediate or a 2 hour delay with AC failure.
- NAC Overload protection and indication.
- Provision for mounting single or 6 circuit addressable control or relay modules inside the enclosure.
General Information
Name: Fire-Lite HPFF8CME Power Supply
Category: Fire-Lite Alarms by Honeywell, Fire, Fire Relays & Power, Power Supplies
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number FL-HPFF8CME Brand Name Fire-Lite Alarms by Honeywell Manufacturer Silent Knight Manufacturer Part Number HPFF8CME Product Model HPFF Product Name NAC Expander/Power Supply Product Type Power Supply Â
-
Output Voltage 24V Â
-
Input Voltage 120V AC Output Current 8A Â
