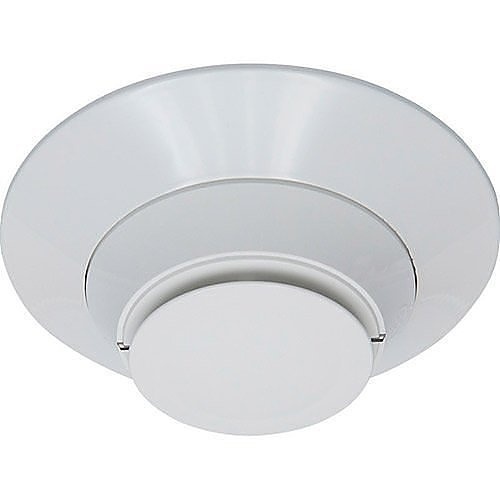

Image of FL-SD365P
Shop all Fire-Lite Alarms by Honeywell

Fire-Lite SD365-P Fire-Lite SD365 Pallet of (540) Addressable Photoelectric Smoke Detector, LiteSpeed Only, White

SD365|FL-SD365P
Shop all Fire-Lite Alarms by Honeywell

Fire-Lite SD365-P Fire-Lite SD365 Pallet of (540) Addressable Photoelectric Smoke Detector, LiteSpeed Only, White

SD365|FL-SD365P
Key Features
  • Two-wire SLC loop connection
  • Stable communication technique with noise i mmunity
  • Built-in tamper-resistant feature- functional test switch activated by external magnet- walk test with address display
Key Features
  • Two-wire SLC loop connection
  • Stable communication technique with noise i mmunity
  • Built-in tamper-resistant feature- functional test switch activated by external magnet- walk test with address display

Sign In for Dealer Pricing

Become an ADI Customer
Fire Lite
Key Features
  • Two-wire SLC loop connection
  • Stable communication technique with noise i mmunity
  • Built-in tamper-resistant feature- functional test switch activated by external magnet- walk test with address display
Fire-Lite Alarms by Honeywell

Fire-Lite SD365-P Fire-Lite SD365 Pallet of (540) Addressable Photoelectric Smoke Detector, LiteSpeed Only, White

SD365 | FL-SD365P

Please sign in to view pricing and availability and to add to cart.

Accessories

Siren & Strobe Combo
W Box Self-Contained Siren/Strobe
ADI # 0E-OUTDSIRSR
MODEL # 0E-OUTDSIRSR
ADI PRO
ADI PRO 0E-OUTDSIRSR Indoor/Outdoor Self Contained 120dB Siren/Strobe, Red
0E-OUTDSIRSR|0E-OUTDSIRSR
Sign In for Dealer Pricing
Aerosol Detector Testers
W Box 0E-SMOKETEST Aerosol Smoke Detector Tester
ADI # 0E-SMOKETEST
MODEL # 0E-SMOKETEST
ADI PRO
ADI PRO 0E-SMOKETEST Aerosol Smoke Detector Tester
0E-SMOKETEST|0E-SMOKETEST
Sign In for Dealer Pricing
Electromagnetic Door Holders
Image of 0E-MAGDRHLDR
ADI # 0E-MAGDRHLDR
MODEL # 0E-MAGDRHLDR
ADI PRO
ADI PRO 0E-MAGDRHLDR Magnetic Door Holder, Surface and Flush Mount
0E-MAGDRHLDR|0E-MAGDRHLDR
Sign In for Dealer Pricing
Overview
Specifications
Documents

Product Overview

SD365 Series intelligent plug-in smoke detectors are designed for both performance and aesthetics. A new modern, sleek, contemporary design and enhanced optical sensing chamber is engineered to sense smoke produced by a wide range of combustion sources in accordance with more stringent code standards.

Main Features

  • Two-wire SLC loop connection
  • Stable communication technique with noise i mmunity
  • Built-in tamper-resistant feature- functional test switch activated by external magnet- walk test with address display
  • Removable cover and insect-resistant screen for simple field cleaning
  • Low standby current
  • Sealed against back pressure
  • Separate base with SEMS screws for wiring allows interchange of photoelectric, ionization and thermal sensors, optional relay, isolator, and sounder bases
  • Designed and to mount directly on the surface or the electrical box
  • Factory preset at 1.5% nominal sensitivity for panel alarm threshold level
  • LED blinks when the unit is polled (communicating with the fire panel) and latches in alarm

General Information

Name: Fire-Lite SD365-P Fire-Lite SD365 Pallet of (540) Addressable Photoelectric Smoke Detector, LiteSpeed Only, White
Category: Fire-Lite Alarms by Honeywell, Fire, Fire Detection Devices, Smoke Detectors
UPC Code:
Country of Origin: Mexico. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
Installation Instructions
Manufacturer Brochure
Additional Resources
