TP-Link TL-FC111PB-20 10/100 Mbps WDM Media Converter with 1-Port PoE
TP-Link TL-FC111PB-20 10/100 Mbps WDM Media Converter with 1-Port PoE
- Designed to convert 100BASE-FX SC fiber to 100Base-Tx copper media or vice versa.
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode. Supports auto MDI/MDIX for TX port.
- The 802.3af PoE output makes remote camera deployment easier and more convenient.
- Designed to convert 100BASE-FX SC fiber to 100Base-Tx copper media or vice versa.
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode. Supports auto MDI/MDIX for TX port.
- The 802.3af PoE output makes remote camera deployment easier and more convenient.
Sign In for Dealer Pricing
Become an ADI Customer- Designed to convert 100BASE-FX SC fiber to 100Base-Tx copper media or vice versa.
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode. Supports auto MDI/MDIX for TX port.
- The 802.3af PoE output makes remote camera deployment easier and more convenient.
TP-Link TL-FC111PB-20 10/100 Mbps WDM Media Converter with 1-Port PoE
TL-FC111PB-20 | FP-TLFC1PB20
Please sign in to view pricing and availability and to add to cart.
Product Overview
What This Product Does

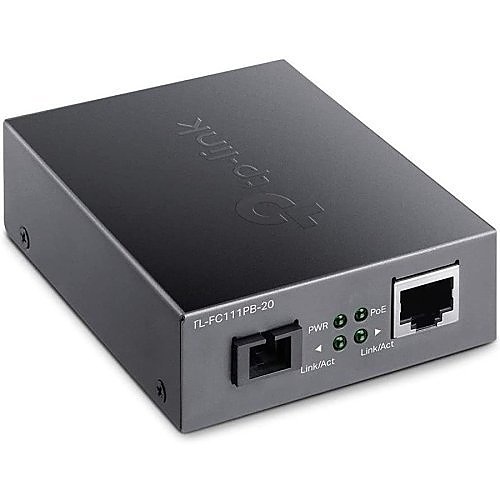

TL-FC111PB-20 is a 10/100 Mbps media converter with 802.3af PoE output, providing 1× 10/100 Mbps PoE RJ45 port and 1× 100 Mbps SC fiber port, which can convert between electrical and optical signals. With up to 20 km fiber transmission distance and 802.3af PoE output, the media converter is designed to address the needs of flexible long-range surveillance deployment with optical fibers. It provides an economical path towards extending the distance of an existing network.
How This Product Works
TL-FC111PB-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC111PB-20 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC111PB-20 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter TL-FC111A-20 is one of the products that can cooperate with TL-FC111PB-20.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
Main Features
- Designed to convert 100BASE-FX SC fiber to 100Base-Tx copper media or vice versa.
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode. Supports auto MDI/MDIX for TX port.
- The 802.3af PoE output makes remote camera deployment easier and more convenient.
- TL-FC111PB-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance up to 20 km with only one single-mode fiber, which saves half of the cable deployment cost for customers compares to dual-fiber deployment.
- Wavelength: Tx 1310 nm, Rx 1550nm; Compatible TP-Link model: TL-FC111A-20.
General Information
Specifications
-
ADI Part Number FP-TLFC1PB20 Brand Name TP-Link Manufacturer TP-LINK Technologies Co., Ltd Manufacturer Part Number TL-FC111PB-20 Product Model TL-FC111PB-20 Product Name 10/100Mbps WDM Media Converter with 1-Port PoE Product Type Transceiver/Media Converter
-
Media Type Supported Optical Fiber, Twisted Pair
-
Network (RJ-45) Yes Number of PoE (RJ-45) Ports 1 Number of Ports 2 Number of SC Ports 1
-
Network Technology 10/100Base-T
-
Ethernet Technology 10 Gigabit Ethernet
-
Depth 2.9" Height 1.1" Width 3.7"
-
Power Source Power Adapter
-
Mount Type Freestanding
-
Limited Warranty 2-Year
-
Country of Origin CN Package Contents - Media Converter TL-FC111PB-20
- Power Adapter
- Installation Guide
