TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver

Brand: TP-Link
ADI #:FP-TLSM5110 Model #: SM5110-LR  Name: TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver
  • Single-Mode SFP+ Module, Supports full-duplex.
  • Wavelength: 1310nm. Data Rate: 10 Gbps. Port Type: LC Duplex.
  • Max. Cable Length: 10km using 9/125um Single-Mode Fiber.

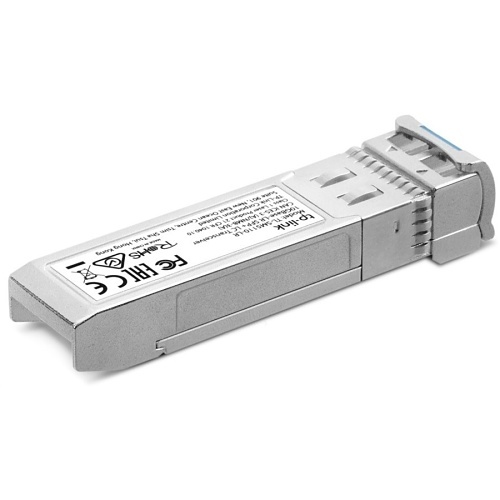

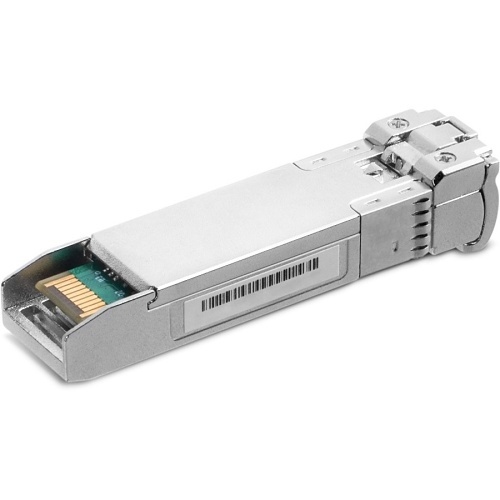

Image of FP-TLSM5110

Product Overview

Discover the power of high-speed connectivity with the TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver. This single-mode SFP+ module supports a full-duplex operation and boasts a data rate of 10 Gbps over a wavelength of 1310nm. It features an LC duplex port and can extend up to 10km using 9/125um single-mode fiber. Ensure your connections are secure and clean with the protective dust plug, and enjoy the convenience of a hot-pluggable design for maximum flexibility. Perfect for expanding your network's reach without sacrificing speed or quality. Upgrade your network today!

General Information

Name : TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver , TP-Link
Category : SFP Modules
UPC Code : 840030702808
Country of Origin : China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : FP-TLSM5110
Brand Name : TP-Link
Manufacturer : TP-LINK Technologies Co., Ltd
Manufacturer Part Number : TL-SM5110-LR
Product Name : 10GBase-LR SFP+ LC Transceiver
Product Type : SFP+

Technical Information

Media Type Supported : Optical Fiber

Interfaces/Ports

Connector Type : LC
Interfaces/Ports Details : 1 x LC Duplex 10GBase-LR Network
Total Number of Ports : 1

Media & Performance

Fiber Mode Supported : Single-mode
Fiber Optic Cable Standard : 1310 nm, 9/125 µm
Network Technology : 10GBase-LR

Network & Communication

Ethernet Technology : 10 Gigabit Ethernet

Physical Characteristics

Application/Usage : Data Networking, Optical Network
Form Factor : Hot-pluggable, Hot-swappable

Warranty

Limited Warranty : 2 year

Miscellaneous

Compatibility : <ul> <li>MSA Compliant</li> <li>TP-Link JetStream Switches</li> </ul>
Environmentally Friendly : Yes
