Simply45 S45-1700P Proseries CAT6/6a Unshielded Connector, Pass Through RJ45 with Cap45, 100-Pack
S45-1700P|G0-S451700P
Simply45 S45-1700P Proseries CAT6/6a Unshielded Connector, Pass Through RJ45 with Cap45, 100-Pack
S45-1700P|G0-S451700P
Key Features
What's Included
- Pass Through with Cap45
- 23AWG Solid
- Conductor Range 1.05mm - 1.20mm (0.041″-0.047")
Key Features
What's Included
- Pass Through with Cap45
- 23AWG Solid
- Conductor Range 1.05mm - 1.20mm (0.041″-0.047")
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- Pass Through with Cap45
- 23AWG Solid
- Conductor Range 1.05mm - 1.20mm (0.041″-0.047")

Simply45
Simply45 S45-1700P Proseries CAT6/6a Unshielded Connector, Pass Through RJ45 with Cap45, 100-Pack
S45-1700P | G0-S451700P
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

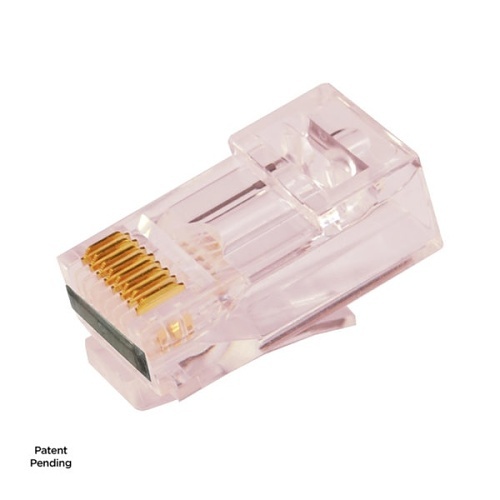

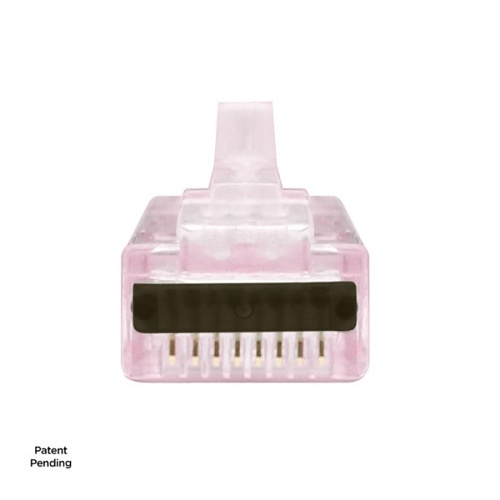

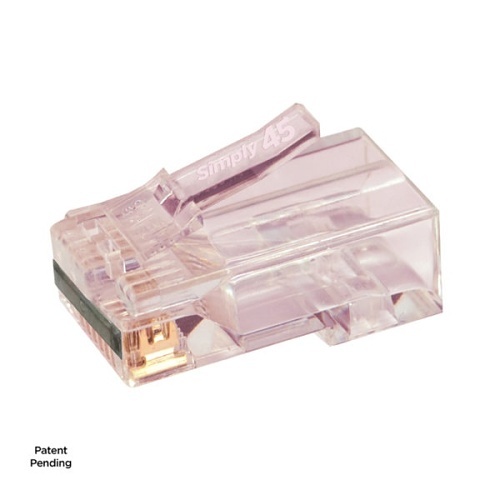

Simply45™ the industry-leading brand for RJ45 modular plug innovation and performance solutions introduces our ProSeries Pass Through RJ45 Modular Plug, S45-1700P for unshielded LAN cables. This exclusive and patent-pending pass through RJ45 modular plug is a historic breakthrough in "pass-through" RJ45 reliability and performance. The Simply45™ ProSeries introduces the exclusive Cap45™ (patent pending). Cap45™ is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends. Cap45™ prevents against electrical shorting in the RJ45 socket due to improperly trimmed wires or in device sockets that may not be 100% compliant. With Cap45™, any electrical risks associated with exposed wire ends are now eliminated completely.
Main Features
- Pass Through with Cap45
- 23AWG Solid
- Conductor Range 1.05mm - 1.20mm (0.041″-0.047")
- Max Cable OD 7.4mm (0.291″)
- UL94 V0 Commercial (Plenum, LSZH) Rated
- Red Tint
- 3 Prong Style
- 50µ 24ct Gold
General Information
Name: Simply45 S45-1700P Proseries CAT6/6a Unshielded Connector, Pass Through RJ45 with Cap45, 100-Pack
Category: Simply45, Data Comm & Networking, Cable Connectors, Network Cable Connectors
UPC Code: 817777017724
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
-
ADI Part Number G0-S451700P Brand Name Simply45 Manufacturer SIMPLY45 LLC Manufacturer Part Number S45-1700P Packaged Quantity 100 Product Line Simply45 Product Model S45-1700P Product Name S45-1700P - ProSeries Cat6/6a Unshielded - Pass Through RJ45 with Cap45 Product Series ProSeries Product Type Network Connector Weight 6.88oz
-
Cable Type Category 6, Category 6a Contact Plating Gold Shielding No
-
TAA Compliant Yes
-
Connector Type RJ-45 Network Male Number of Contacts 8
-
Color Red Package Type Jar
-
Limited Warranty Lifetime
-
Country of Origin TW Environmental Certification RoHS Environmentally Friendly Yes Features 3 Prong Contact, 50µ Gold, Color Tinted, Crosstalk Protection, Far End Cross Talk (FEXT), Fire Retardant, HDBaseT, Near End Cross Talk (NEXT), Plenum, PoE, PoE+, PoE++, Polycarbonate, Solid, Stranded Package Contents - Network Connector
- Cap45
