Simply45 S45-1705P CAT6/6A Unshielded Pass-Through RJ45 Modular Plugs with Cap45, 500-Piece
S45-1705P|G0-S451705P
Simply45 S45-1705P CAT6/6A Unshielded Pass-Through RJ45 Modular Plugs with Cap45, 500-Piece
S45-1705P|G0-S451705P
Key Features
- Pass Through with Cap45
- 23AWG Solid
- Conductor Range 1.05mm - 1.20mm (0.041″-0.047")
Key Features
- Pass Through with Cap45
- 23AWG Solid
- Conductor Range 1.05mm - 1.20mm (0.041″-0.047")
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Pass Through with Cap45
- 23AWG Solid
- Conductor Range 1.05mm - 1.20mm (0.041″-0.047")
Simply45
Simply45 S45-1705P CAT6/6A Unshielded Pass-Through RJ45 Modular Plugs with Cap45, 500-Piece
S45-1705P | G0-S451705P
Please sign in to view pricing and availability and to add to cart.
Accessories
Crimping & Punch Down Tools
ADI # G0-S45C101
MODEL # S45-C101
S45-C101|G0-S45C101
Sign In for Dealer Pricing
Category 6 Network Cables
ADI # 6M-258300304
MODEL # 258300304
258300304|6M-258300304
Sign In for Dealer Pricing
Category 6 Network Cables
ADI # 6M-258300301
MODEL # 258300301
258300301|6M-258300301
Sign In for Dealer Pricing
Category 6 Network Cables
ADI # 6M-258300303
MODEL # 258300303
258300303|6M-258300303
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

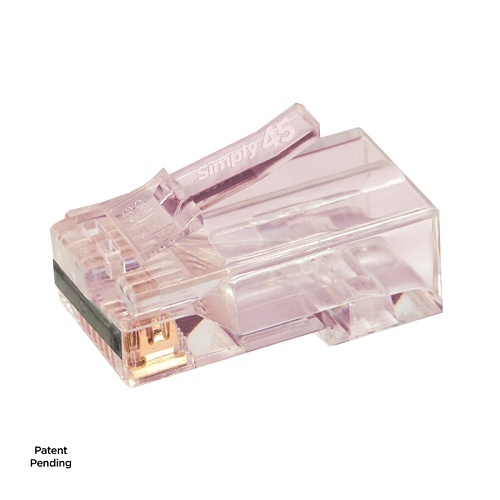

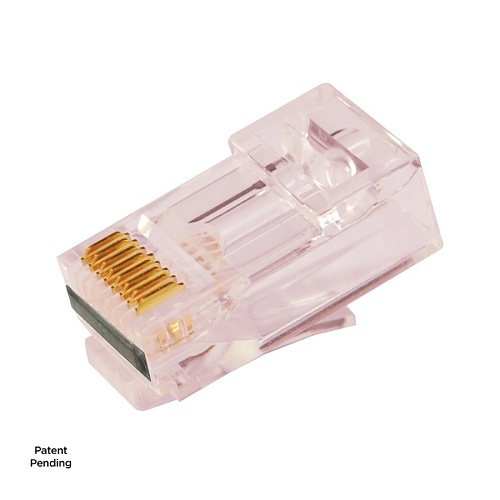

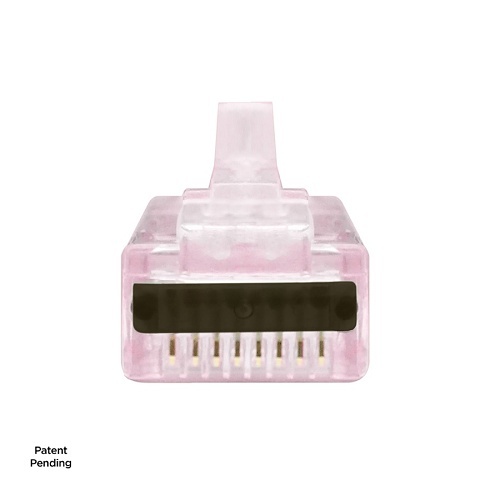

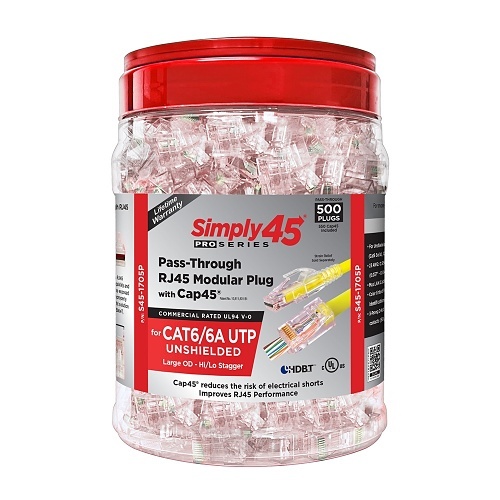

Simply45 PROSeries Unshielded Pass Through RJ45 Modular Plugs with Cap45™ for 23AWG Solid (Cat6/6a UTP), Hi/Lo Stagger, Wire Conductors 1.05mm-1.2mm/0.041"-0,047", Max Cable OD 7.4mm/0.0291", UL94 V0 Commercial Rated, Red Tint- 500pcs/Jar
Main Features
- Pass Through with Cap45
- 23AWG Solid
- Conductor Range 1.05mm - 1.20mm (0.041″-0.047")
- Max Cable OD 7.4mm (0.291″)
- UL94 V0 Commercial (Plenum, LSZH) Rated
- Red Tint
- 3 Prong Style
- 50µ 24ct Gold
General Information
Name: Simply45 S45-1705P CAT6/6A Unshielded Pass-Through RJ45 Modular Plugs with Cap45, 500-Piece
Category: Simply45, Data Comm & Networking, Cable Connectors, Network Cable Connectors
UPC Code: 810093721962
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
-
ADI Part Number G0-S451705P Brand Name Simply45 Manufacturer Part Number S45-1705P Product Line Simply45 Product Model S45-1705P Product Series ProSeries
