Product Overview
INSTALLATION APPLICATIONS
This series is one of our most popular miniature surface mount switches. Available both with and without flanges, this low profile series is perfect for residential and commercial use where larger configurations are not appropriate. Incorporates into most decor without being noticeable. Available in regular and wide gap. The 100 series come with mounting screws yet all come with 3M tape for mounting on aluminum, wood or vinyl. Spacers, switch only, magnet only and additional 3M tape are also available separately. Molded covers are included with P/N 100-TC.
General Information

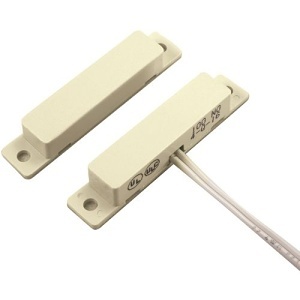

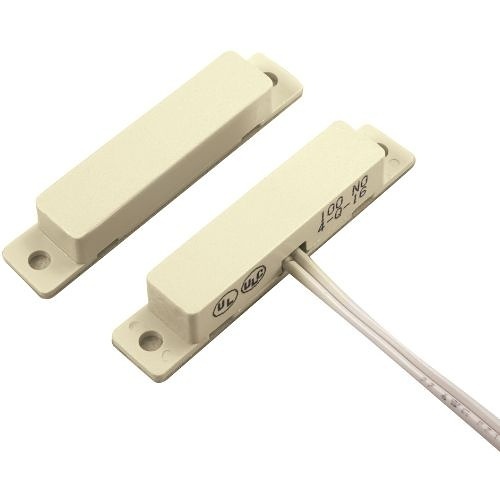

Name : GRI 101-12-B Miniature Surface Mount Switch Set, Brown , George Risk Industries
Category : Magnetic Contacts
UPC Code : 697625003358
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : GI-10112B
Brand Name : George Risk Industries
Connectivity Technology : Wired
Manufacturer : George Risk Industries
Manufacturer Part Number : 10112B
Product Name : 2" Miniature Surface Mount Switch Set
Product Series : 100
Product Type : Magnetic Contact
Technical Information
Contact Configuration : N.C.
Contact Form : Form B
Contact Resistance : 140000 Micro Ohm
Contact Resistance (Ohm) : 0.14
Lead Length : 12"
Lead Length (mm) : 304.8
Mounting Type : Surface Mount
Power Consumption : 5W
Standard Gap : 1"
Standard Gap (mm) : 25.4
Termination Style : Wire Leads
Physical Characteristics
Application/Usage : Commercial, Residential
Color Family : Brown
Power Description
Input Current : 250 mA
Input Current (A) : 0.25
Input Voltage : 175V DC
Power Consumption (W) : 5.000
Power Source : DC Adapter
Product Information
Contact Type : Open Loop
Warranty
Limited Warranty : Lifetime
Miscellaneous
Features : Built-in Resistor, Self Adhesive
Package Contents : <ul><li> 2" Miniature Surface Mount Switch Set</li><li> Mounting Screws</li><li> 3M Tape</li></ul>
