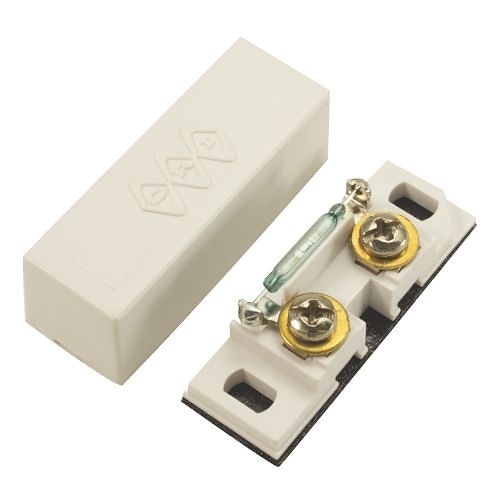

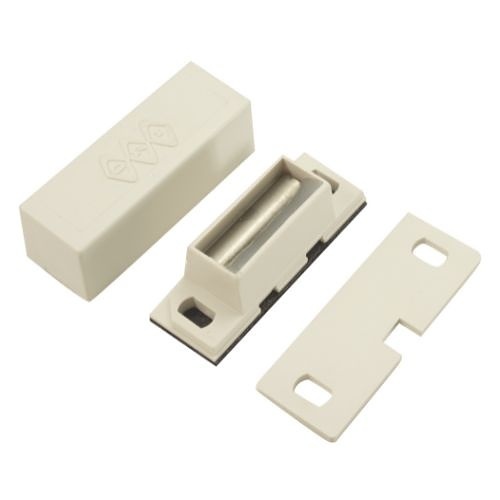

GRI 129AWG-B Mini Surface Switch with Cover, Brown
129AWG-B|GI-129AWGB
GRI 129AWG-B Mini Surface Switch with Cover, Brown
129AWG-B|GI-129AWGB
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The GRI 129A style switch set is designed for those installations where a more esthetic profile is required. The attractive snap-on cover makes the 129A perfect for residential and light commercial applications. The cover also comes with knockout points if the wiring requires surface mount and the base is designed for taking the wire out directly into the wall if needed. Available in standard and wide gaps, White, Brown or Gray, the 129A set comes in closed and open loop with all mounting hardware included.
INSTALLATION APPLICATIONS:
The G.R.I. 129A style switch set is designed for those installations where a more aesthetic profile is required. The attractive snap-on cover makes the 129A perfect for residential and light commercial applications. The cover also comes with knockout points if the wiring requires surface mount, and the base is designed for taking the wire out directly into the wall if needed. Available in standard and wide gaps, White, Brown or Gray, the 129A set comes in closed and open loop with all mounting hardware included.
INSTALLATION APPLICATIONS:
The G.R.I. 129A style switch set is designed for those installations where a more aesthetic profile is required. The attractive snap-on cover makes the 129A perfect for residential and light commercial applications. The cover also comes with knockout points if the wiring requires surface mount, and the base is designed for taking the wire out directly into the wall if needed. Available in standard and wide gaps, White, Brown or Gray, the 129A set comes in closed and open loop with all mounting hardware included.
Main Features
- Lifetime Warranty
- UL and ULC Approved
- Available in Closed Loop and Open Loop
- Low Profile
- Snap-on Cover
- Size 1/2" x 1/2" x 1 1/2"
- Private Labeling Available
- Switches or Magnets are Available Separately
- Standard Gap 1/2"
- Wide Gap 1"
General Information
Name: GRI 129AWG-B Mini Surface Switch with Cover, Brown
Category: George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code: 697625004119
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number GI-129AWGB Brand Name GRI Manufacturer George Risk Industries Manufacturer Part Number 129AWG-B Product Model 129AWG-B Product Name 129AWG-B Magnetic Contact Product Series 129 Product Type Magnetic Contact Â
-
Connectivity Technology Wired Contact Configuration N.O. Contact Form Form A Contact Resistance 150000 Micro Ohm Contact Resistance (Ohm) 0.15 Mounting Type Surface Mount Standard Gap 1" Standard Gap (mm) 25.4 Termination Style Screw Terminal Â
-
Application/Usage Commercial, Residential Color Brown Color Family Brown Product Color Brown Â
-
Input Current 400mA Input Voltage 160V DC Power Source DC Â
-
Contact Type Closed Loop Installation Type Residential Â
-
Limited Warranty Lifetime Â
-
Additional Information Perfect For Residential and Light Commercial Applications Hermetically Sealed Plated Contacts Resist Sticking or Freezing Features Tamper Proof Package Contents 129AWG-B Magnetic Contact Covers Spacers Mounting Hardware Â
