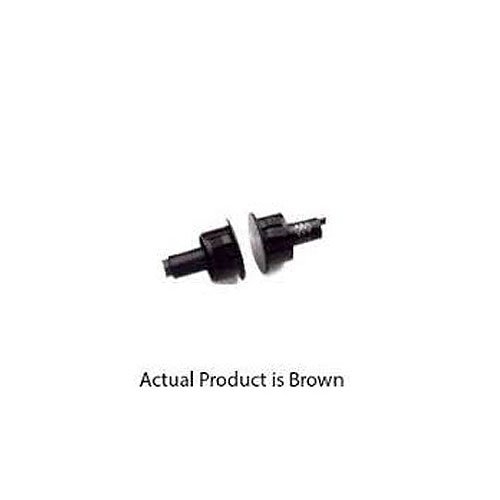

GRI 184-12 184 Series 1" Steel Door Recessed Switch Set, Standard Gap, 10W, 200VDC, 0.40 Amp, Closed Loop, N/O, A, and U.L. 10C Fire Rated Black
Brand: George Risk Industries
ADI #:GI-18412BLCK
Model #: 184-12-BL
Name: GRI 184-12 184 Series 1" Steel Door Recessed Switch Set, Standard Gap, 10W, 200VDC, 0.40 Amp, Closed Loop, N/O, A, and U.L. 10C Fire Rated Black
- Lifetime Warranty
- Colors: White, Brown, Grey or Black
- UL and ULC Approved
Product Overview
The GRI 180 Series is the industry standard 3/4" diameter recessed steel door switch set with 12" leads. The 184 Series is a 1" diameter switch set.
The innovative GRI 8080-T Series is a 3/4" diameter recessed switch set designed for residential, commercial and industrial steel doors and frames. The shorter length and the introduction of PC board type terminals makes the installation of the set quick and simple with no soldering, B connectors or tape to catch during installation or removal, reducing the cost of installation and creating greater profitability.
General Information
Name : GRI 184-12 184 Series 1" Steel Door Recessed Switch Set, Standard Gap, 10W, 200VDC, 0.40 Amp, Closed Loop, N/O, A, and U.L. 10C Fire Rated Black , George Risk IndustriesCategory : Magnetic Contacts
UPC Code : 697625004393
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : GI-18412BLCK
Brand Name : GRI
Connectivity Technology : Cable
Manufacturer : George Risk Industries
Manufacturer Part Number : 184-12-BL
Product Model : 184-12-BL
Product Name : 184-12-BL Magnetic Contact
Product Series : 184
Product Type : Magnetic Contact
Technical Information
Contact Configuration : N.O.
Contact Form : Form A
Contact Resistance : 150000 Micro Ohm
Contact Resistance (Ohm) : 0.15
Lead Length : 12"
Lead Length (mm) : 304.8
Mounting Type : Recessed Mount
Power Consumption : 10 W
Recommended Use : Door
Standard Gap : 0.50"
Standard Gap (mm) : 12.7
Physical Characteristics
Application/Usage : Commercial, Industrial, Residential
Diameter (mm) : 25.4
Power Description
Input Current : 400 mA
Input Current (A) : 0.4
Input Voltage : 200 V DC
Input Voltage (V DC) : 200
Power Consumption (W) : 10.000
Product Information
Contact Type : Closed Loop
Diameter : 1"
Warranty
Limited Warranty : Lifetime
Miscellaneous
Additional Information : <ul> <li>Switches or Magnets are Available Separately</li> <li>Wide Gap 1"+ Gap on Steel</li> <li>Supervisory Loops Available</li> <li>Longer Leads, Zip Cord or Jacketed Cable Upon Request</li> </ul>
Certifications & Standards : <ul> <li>UL</li> <li>ULC</li> <li>UL 10C</li> </ul> <p></p>
Country of Origin : United States
Features : End of Line (EOL) Resistor, Self-lock Mounting
