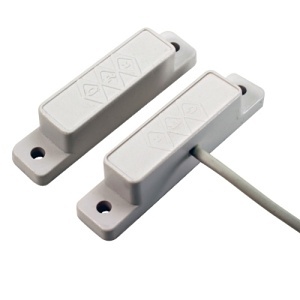

GRI 29B-W 29 Series Surface Mount Magnetic Reed Switch Set, 1' Standard Gap, Open Loop, N/C, B, White
29B
|GI-29BW
Shop all George Risk Industries
GRI 29B-W 29 Series Surface Mount Magnetic Reed Switch Set, 1' Standard Gap, Open Loop, N/C, B, White
29B | GI-29BW
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
This series offers a standard gap of 1 inch, a wide gap of up to 1 1/2 inches and an extra wide gap of 2 inches and can be installed on a steel surface with a minimum gap penalty. The “P” style is a pre-wired switch with 2 feet of conductor cable. A broad range of mounting brackets are also available.
Main Features
- The GRI 29B-W is aWhite magnetic reed switch designed for surface mounting.
- The unit is equipped with a open loop system, top terminals; covers.
- The switch offers a standard gap of up to 1? and 5/8? on steel.
- 24" jacketed cable on PA Series
- Longer leads upon request on PA series
- Side mounted screw terminals on 29 series
- Standard gap up to 1", 5/8" on steel
- Wide gap up to 1 1/2", 3/4" on steel
- Extra wide gap up to 2", 1" on steel
- Spacers, covers and screws Included
General Information
Name: GRI 29B-W 29 Series Surface Mount Magnetic Reed Switch Set, 1' Standard Gap, Open Loop, N/C, B, White
Category: George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code: 697625006960
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number GI-29BW Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 29B-W Product Model 29B Product Name 29B Magnetic Contact Product Series 29 Product Type Magnetic Contact
Connectivity Technology Wired Material Steel Standard Gap 1"
Color White
Power Source DC
Contact Type N.C. Installation Type Commercial Mount Type Surface Mount
Limited Warranty Lifetime Warranty
Additional Information - Surface mount, open loop magnetic contacts
- Plated contacts resist sticking or freezing
- Side screw terminals on 29 series
- Screw down flanges
- Hermetically sealed
Country of Origin US Features 24" jacketed cable on PA Series, Concealed terminals on 28 Series, Extra wide gap up to 2", 1" on steel, Hermetically sealed, Lifetime warranty against workmanship, material and factory defects, Longer leads upon request on PA series, Plated contacts resist sticking or freezing, Screw down flanges, Side mounted screw terminals on 29 series, Side screw terminals on 29 series, Spacers, covers and screws Included, Standard gap up to 1", 5/8" on steel, Surface mount open loop magnetic contacts, UL and ULC approved, Wide gap up to 1 1/2", 3/4" on steel Package Contents - 29B Magnetic Contact
- Mounting Hardware
- Covers
- Spacers
